Square-D / Schneider - Square D 9080LBA165208 760 Amp 600 Volt 4 AWG to 500 MCM Primary Phenolic 1-Pole Standard Power Distribution Block

Essential specifications

12-Digit UPC - 785901097402
Amperage - 760-760 Amp COPPER-620-620 Amp ALUMINIUM
Applications - 9080LB,9080LB51
Catalog Number - 9080LBA165208
Conductor Size - 4 AWG-500 kcmil/14-2/0 AWG

Packaging

1 ea

EAN

00785901097402

Part #

193982

Catalog #

9080LBA165208

Commercial reference

9080LBA165208

12-Digit UPC:

785901097402

Amperage:

760-760 Amp COPPER-620-620 Amp ALUMINIUM

Applications:

9080LB,9080LB51

Catalog Number:

9080LBA165208

Conductor Size:

4 AWG-500 kcmil/14-2/0 AWG

Country of Origin:

USA

Current:

620 Amp

Depths:

3.13 Inch

ERP_productname:

SQD 9080LBA165208 PWR DIST BLOCK

Family Brand Name:

Square D

Heights:

5-1/2 Inch

Material:

Phenolic: Block

Mounting Type:

Surface Mount

Number of Poles:

1 Pole

Size:

3.13 in

Tc Connection:

LOAD LUG 40 LBF.IN AWG 8 COPPER OR ALUMINIUM-LOAD LUG 120 LBF.IN AWG 6...AWG 2/0 COPPER OR ALUMINIUM-LOAD LUG 35 LBF.IN AWG 14...AWG 10 COPPER OR ALUMINIUM-LINE LUG 375 LBF.IN AWG 4...500 KCMIL COPPER OR ALUMINIUM,TIN PLATED ALUMINIUM LUGS

Type:

9080LB51;Power Distribution Block

Voltage:

600 Volt

Widths:

3.17 in

Wire Size:

Line 2, AWG 4...500 kcmil, copper or aluminium;Load 8, AWG 14...AWG 2/0, copper or aluminium

SoneparProductId:

SKU_US_26893543

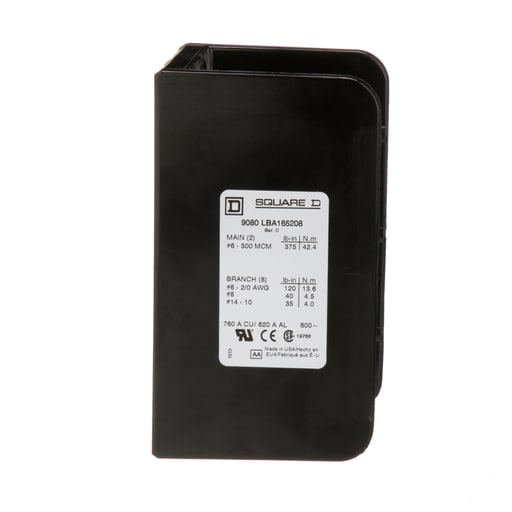

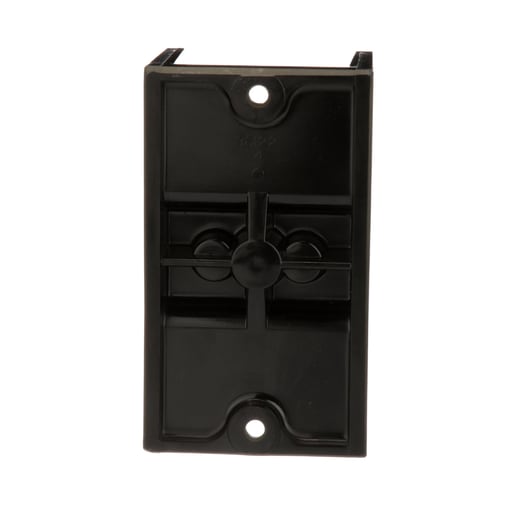

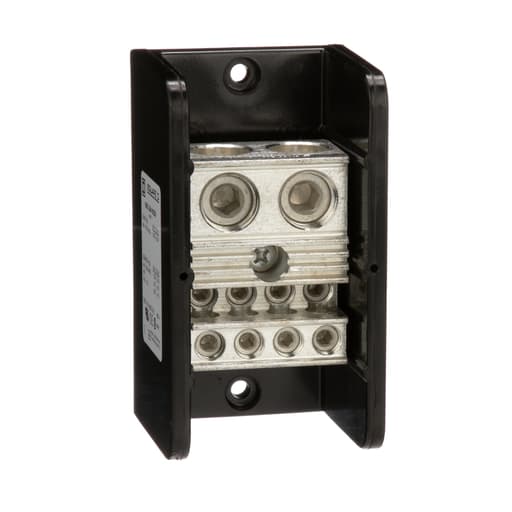

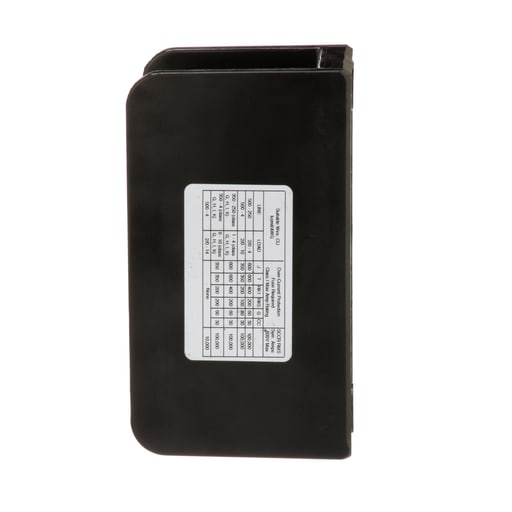

Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This one pole block has two lug openings on the line (main) side and eight lug openings on the load (branch) side. The line side lug is rated to accept one #6 to 500 kcmil copper or aluminum wire. The load side lugs are rated to accept one #14 to 2/0 copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 760 amperes with copper wire and 620 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: 9080LB51
