Square D 9080LBA264108 335 Amp 600 Volt 6 AWG to 400 MCM Primary Phenolic 2-Pole Standard Power Distribution Block

Manufacturer: Square-D / Schneider | Catalog # 9080LBA264108 | Echo Electric Part # 171297
$218.83/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3

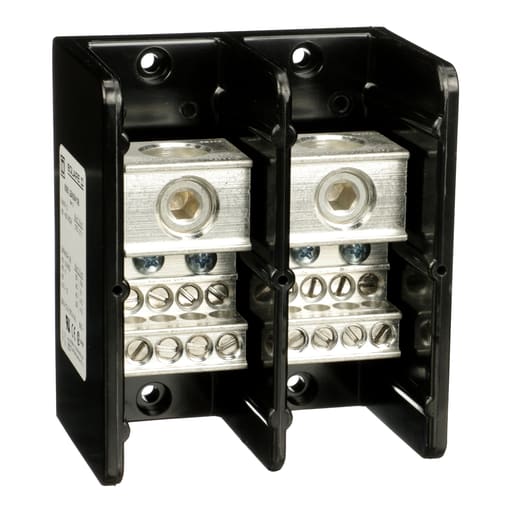

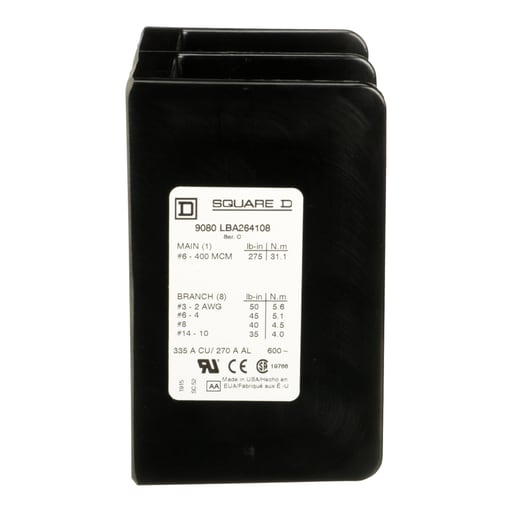

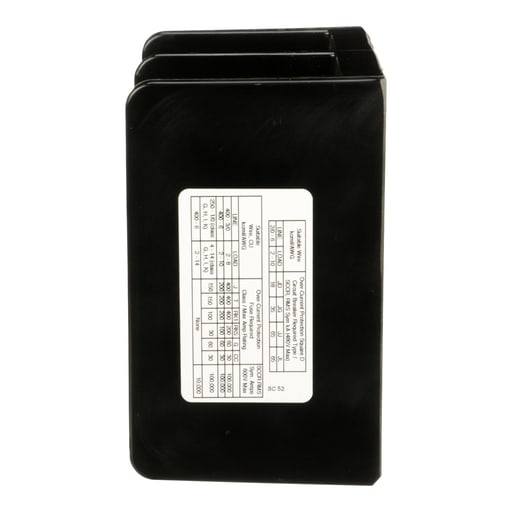

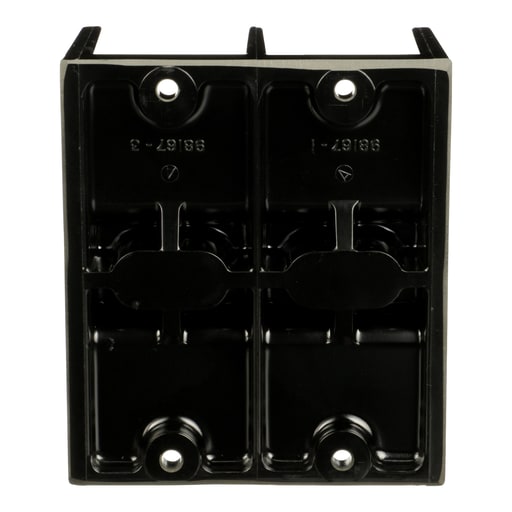

Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This two pole block has one lug opening on the line (main) side and eight lug openings on the load (branch) side. The line side lug is rated to accept one #4 to 600 kcmil copper or aluminum wire. The load side lug is rated to accept one #14 to #2 copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 335 amperes with copper wire and 270 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified.

Technical Information

Amperage
335-335 Amp COPPER-270-270 Amp ALUMINIUM
Applications
9080LB,9080LB42
Conductor Size
4 AWG-600 kcmil/14-2 AWG
Current
270 Amp
Line Rated Current
270-270 A
Material
Phenolic: Block
Mounting Type
Surface Mount
Number of Poles
2 Pole
Number of Terminations
1,8
Operating Temperature
-40-302 degrees F
Short Circuit Current
65 kA
Short Circuit Current Ratng
65 kA
Size
2.91 in
Strip Length
0.56 in
TC Connection
LOAD LUG 45 LBF.IN AWG 6...AWG 4 COPPER OR ALUMINIUM-LOAD LUG 40 LBF.IN AWG 8 COPPER OR ALUMINIUM-LOAD LUG 50 LBF.IN AWG 2 COPPER OR ALUMINIUM-LINE LUG 275 LBF.IN AWG 6...400 KCMIL COPPER OR ALUMINIUM-LOAD LUG 35 LBF.IN AWG 14...AWG 10 COPPER OR ALUMINIUM,TIN PLATED ALUMINIUM LUGS
Type
9080LB42;Power Distribution Block
Voltage
600 Volt
Wire Size
Line 1, AWG 4...600 kcmil, copper or aluminium;Load 8, AWG 14...AWG 2, copper or aluminium

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901157021
GTiN
00785901157021
Product UPC
78590115702

Dimensions

Depth
2.91 Inch
Height
4-3/4 Inch
Warranty Length
18 mth
Width
4.16 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CE,CSA File 70361 Class 6228 01,UL Recognized E60616 CCN XCFR2
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
