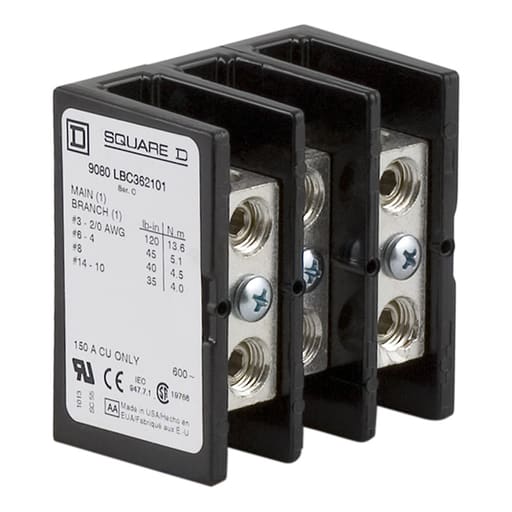

Square-D / Schneider - Square D 9080LBC362101 150 Amp 600 Volt 18 to 1/0 AWG Primary Phenolic 3-Pole Standard Power Distribution Block

12-Digit UPC:

785901097655

Amperage:

150-150 Amp COPPER

Applications:

9080LB,9080LB23

Catalog Number:

9080LBC362101

Conductor Size:

18-1/0 AWG

Country of Origin:

USA

Current:

150 Amp

Depths:

1.78 Inch

ERP_productname:

SQD 9080LBC362101 POWER DISTRIBUTION BLOCK 600V 150A

Family Brand Name:

Square D

Heights:

2.88 Inch

Material:

Phenolic: Block

Mounting Type:

Surface Mount

Number of Poles:

3 Pole

Short Circuit Current:

65 kA

Short Circuit Current Ratng:

65 kA

Size:

1.78 IN,2.75 IN,2.88 IN

Tc Connection:

LINE LUG 50 LBF.IN AWG 6...AWG 1/0 COPPER-LINE LUG 40 LBF.IN AWG 8 COPPER-LINE LUG 35 LBF.IN AWG 14...AWG 10 COPPER-LOAD LUG 50 LBF.IN AWG 6...AWG 1/0 COPPER-LOAD LUG 40 LBF.IN AWG 8 COPPER-LOAD LUG 35 LBF.IN AWG 14...AWG 10 COPPER,TIN PLATED COPPER LUGS

Type:

9080LB23,POWER DISTRIBUTION BLOCK

Voltage:

600 Volt

Widths:

2.75 in

Wire Size:

Line 1, AWG 18...AWG 1/0, copper;Load 1, AWG 18...AWG 1/0, copper

SoneparProductId:

SKU_US_26412425
