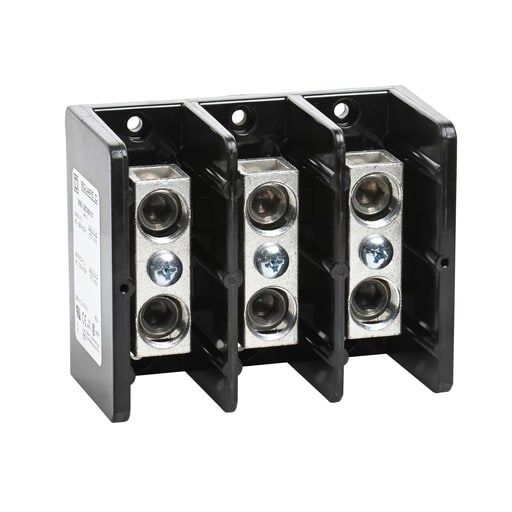

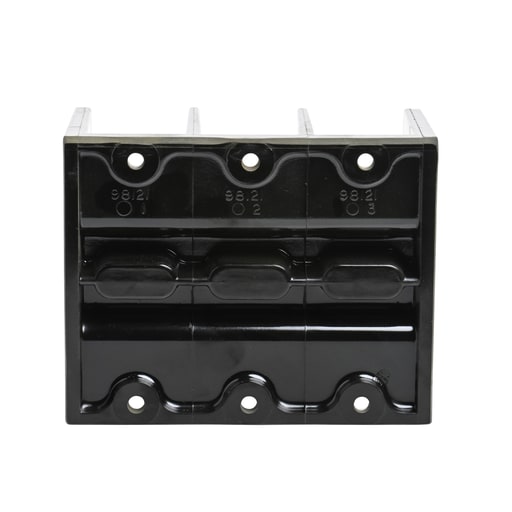

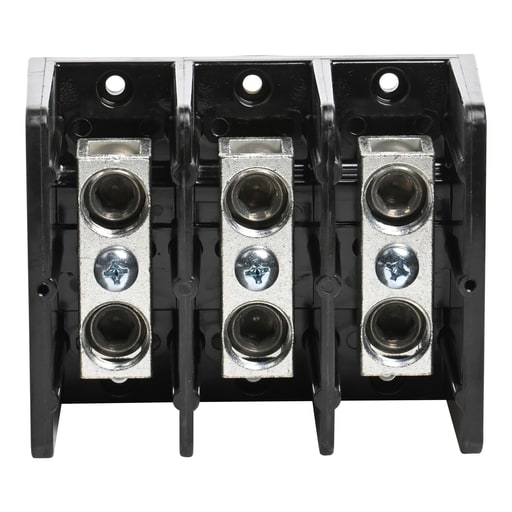

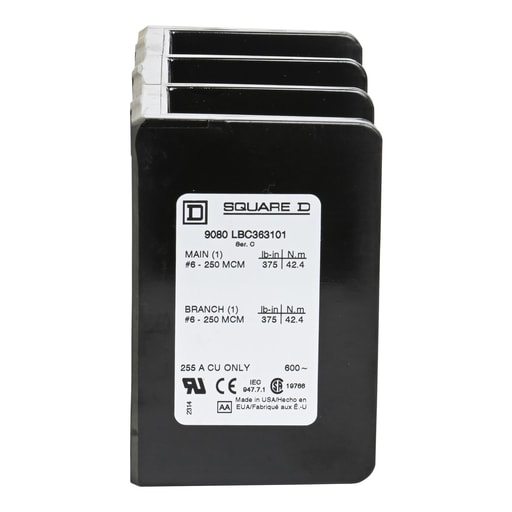

Product image for Square D 9080LBC363101 255 Amp 600 Volt 6 AWG to 250 kcmil Primary Phenolic 3-Pole Standard Power Distribution Block
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Square D 9080LBC363101 255 Amp 600 Volt 6 AWG to 250 kcmil Primary Phenolic 3-Pole Standard Power Distribution Block

Manufacturer: Square-D / Schneider | Catalog # 9080LBC363101 | Echo Electric Part # 227355
$431.56/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This three pole block has one lug opening on the line (main) side and one lug opening on the load (branch) side. The line side lug is rated to accept one #6 to 250 kcmil copper wire. The load side lug is rated to accept one #6 to 250 kcmil copper wire. The lugs are made of copper. The lugs are rated for 250 amperes with copper wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified.

Technical Information

Amperage
255-255 Amp COPPER
Applications
9080LB,9080LB33
Conductor Size
6 AWG-250 kcmil
Current
255 Amp
Line Rated Current
255-255 A
Material
Phenolic: Block
Mounting Type
Surface Mount
Number of Poles
3 Pole
Number of Terminations
1
Operating Temperature
-40-302 degrees F
Size
1 1/2 in
Strip Length
1.19 in
TC Connection
LINE LUG 375 LBF.IN AWG 6...250 KCMIL COPPER OR ALUMINIUM-LOAD LUG 375 LBF.IN AWG 6...250 KCMIL COPPER OR ALUMINIUM,TIN PLATED COPPER LUGS
Type
9080LB33;Power Distribution Block
Voltage
600 Volt
Wire Size
Line 1, AWG 6...250 kcmil, copper;Load 1, AWG 6...250 kcmil, copper

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901097679
GTiN
00785901097679
Product UPC
78590109767

Dimensions

Depth
2.61 Inch
Height
4 Inch
Warranty Length
18 mth
Width
5 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CE,CSA File 70361 Class 6228 01,UL Recognized E60616 CCN XCFR2
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • 9080LB33
