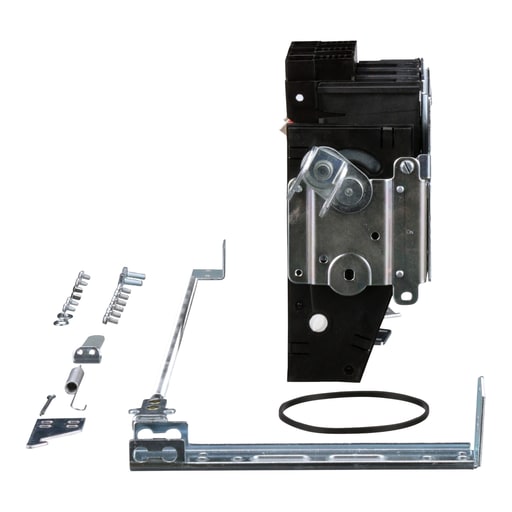

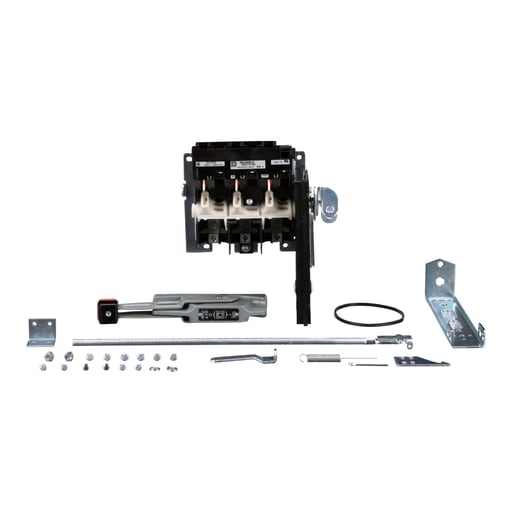

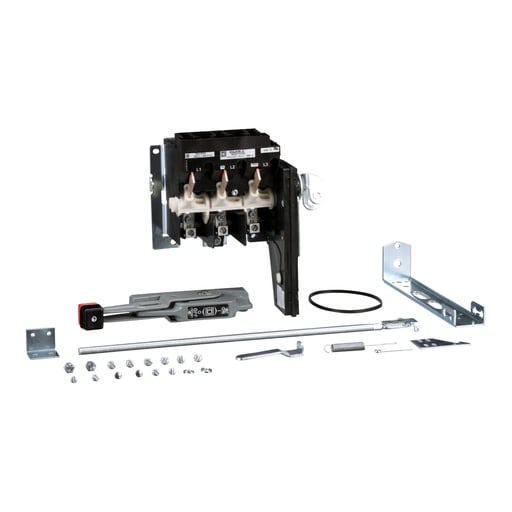

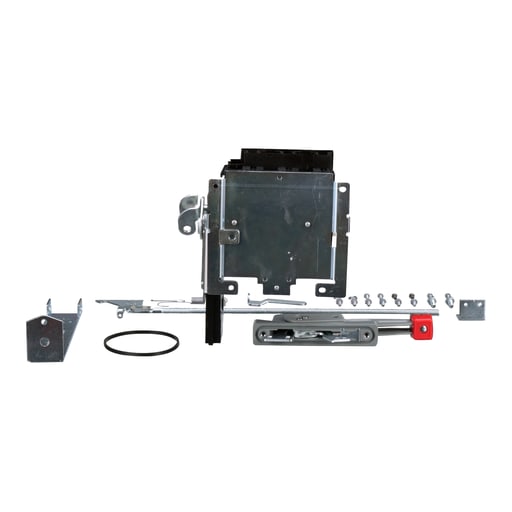

Square-D / Schneider - Square D 9422ATCN301 30 Amp 600 VAC A1 Mechanism Handle Non-Fusible Switch

9422ATCF disconnect switches are designed for control panel installations. This disconnect switch is fully compatible with 9422A handle operators and 9423 door closing mechanisms. This disconnect switch is without fuse clips. This 30 A disconnect switch is designed for flange mounting. The variable depth mounting range is 6.63 to 18.00 inches. Disconnect switch has horsepower ratings of 7.5 HP at 208 VAC, 7.5 HP at 240 VAC, 15 HP at 480 VAC and 20 HP at 600 VAC. Switch is also rated for 5 HP at 250 VDC and 15 HP at 600 VDC when using two poles. 9422A1 operating handle is overpacked with this disconnect switch. Disconnect switch lugs are rated for #14 to #2 AWG with copper wire and #14 to #2 with aluminum wire. Operating mechanism is UL Component Recognized and CSA certified Disconnect switch is UL Component Recognized and CSA certified Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Spare Part Products: 9422TCN30; 9422A1
