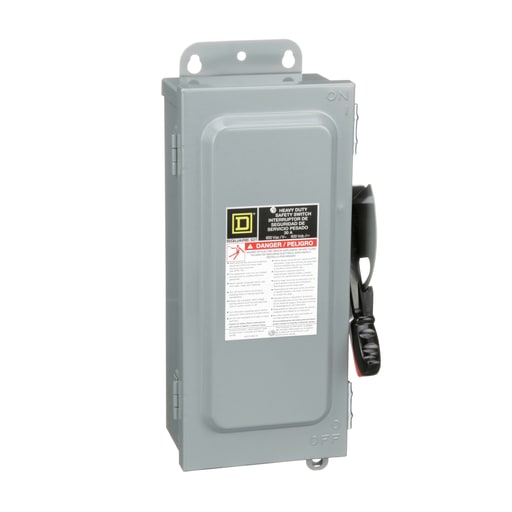

Product image for Square D H463AWK 600 VAC 100 Amp 4-Pole Class H/J/K/L/R Fusible Heavy Duty Safety Switch
Image thumbnail 0
Image thumbnail 1
Email

Square D H463AWK 600 VAC 100 Amp 4-Pole Class H/J/K/L/R Fusible Heavy Duty Safety Switch

Manufacturer: Square-D / Schneider | Catalog # H463AWK | Echo Electric Part # 139200
$2,494.09/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
Safety switch, heavy duty, fusible, 100A, 4 pole, 75hp, 600VAC/DC, NEMA 12

Technical Information

Amperage
100 Amp
Applications
HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT.
Conductor Size
12-1/0 AWG (AL)/14-1/0 AWG (CU)
Contact Configuration
4
Contact Rating
Y
Current
100 Amp
Disconnect Type
Fusible disconnect
Duty Rating
Heavy duty
Enclosure
12,3R
Enclosure Material
Stainless Steel
Enclosure Rating
3R, 12
Fuse Type
H Or K,R Or J
Line Rated Current
100 A
Mounting Type
Surface
NEMA Size
12,3R
Net Weight
13.61 kg
Number of Phases
3 Phase
Number of Poles
4 Pole
Short Circuit Current
10 kA
Size
16.13 IN,20.5 IN,6.8 IN
TC Connection
AWG 12...AWG 1/0 ALUMINIUM-AWG 14...AWG 1/0 COPPER,LUGS
Type
SAFETY SWITCH
Voltage
600 Volt
Wattage
12 3R
Wire Size
AWG 12...AWG 1/0 aluminium;AWG 14...AWG 1/0 copper

Manufacturer Information

Brand
Square D
Sub Brand
HEAVY DUTY

General Product Info

12-Digit UPC
785901483038
Environmental Conditions
RAINPROOF, SLEET/ICE PROOF AND DUST TIGHT (INDOOR/OUTDOOR)
GTiN
00785901483038
Product UPC
78590148303
Weight
30.00 lb

Dimensions

Depth
6.8 Inch
Height
20-1/2 Inch
Warranty Length
18 mth
Width
16.13 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL Listed File E2875
Country of Origin
USA
