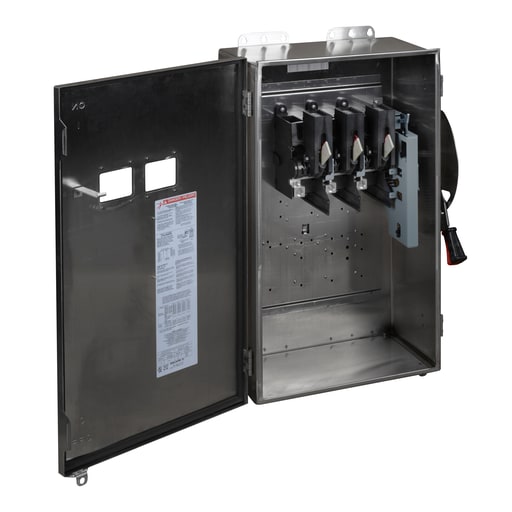

Square D HU364DSVW 600 VAC 200 Amp 3-Pole Non-Fusible Heavy Duty Safety Switch

Manufacturer: Square-D / Schneider | Catalog # HU364DSVW | Echo Electric Part # 135574
$6,943.06/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1
These Square D heavy duty safety switches are designed to provide exceptional electrical protection in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard. Some of the things that make these switches desirable is there reliability, life durability, ease to install and safety features. Due to this, these heavy duty switches are the ideal for your electrical disconnect and protection for all your commercial and industrial needs.

Technical Information

Amperage
200 Amp
Applications
HEAVY DUTY
Conductor Size
6 AWG-250 kcmil
Current
200 Amp
Duty Rating
Heavy duty NULL
Enclosure
4,4X,5
Enclosure Material
Stainless Steel
Line Rated Current
200 A
Material
Stainless Steel
Mounting Type
Surface
NEMA Size
4,4X,5
Net Weight
24.95 kg
Number of Phases
3 Phase
Number of Poles
3 Pole
Size
8.88 in
TC Connection
LUGS
Type
Non-fusible disconnect;Single Throw Safety Switch
Voltage
600 Volt
Wire Type
AWG 6...250 KCMIL COPPER OR ALUMINIUM

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901208792
Environmental Conditions
RAINPROOF, DUST TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR)
GTiN
00785901208792
Product UPC
78590120879
Weight
55.01 lb

Dimensions

Depth
8.88 Inch
Height
29 Inch
Warranty Length
18 mth
Width
19.25 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL Listed File E2875
Country of Origin
USA
