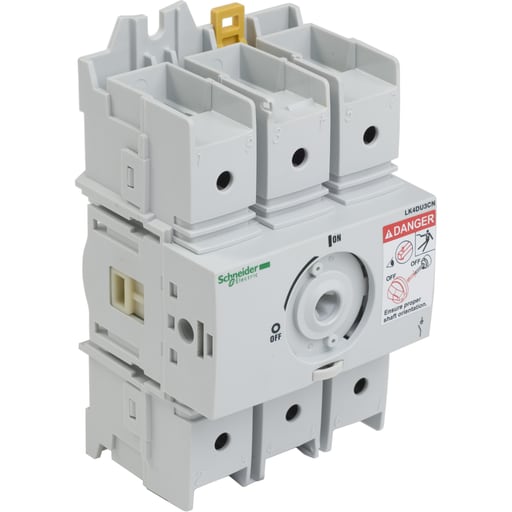

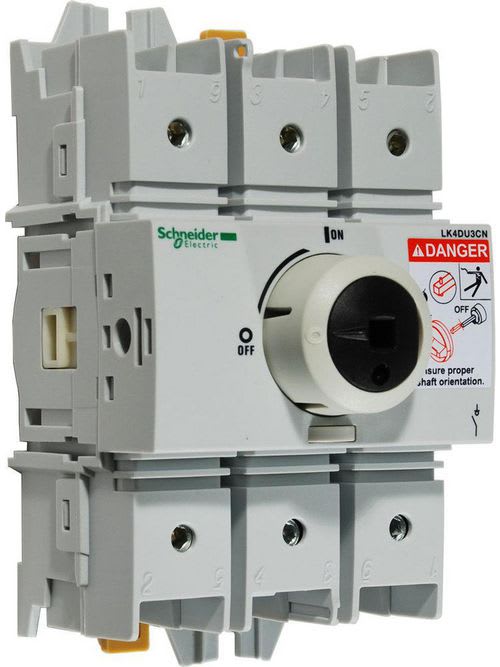

Square D LK4DU3CN 600 Volt 30 Amp 3-Pole Non-Fusible Disconnect Switch

Manufacturer: Square-D / Schneider | Catalog # LK4DU3CN | Echo Electric Part # 134568
$319.39/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
Disconnect Switch, TeSys LK4 Non fusible, 25hp at 600VAC, 3 pole, max 32A rated, plate mount

Technical Information

Actuator
Rotary handle
Amperage
32 A400 V AC AC-22A IEC-32 A400 V AC AC-23A IEC-32 A690 V AC AC-22A IEC-32 A690 V AC AC-23A IEC-30 Amp CSA-30 Amp UL
Applications
10 HP 240 V 30 A AC-20 HP 480 V 28 A AC-25 HP 600 V 28 A AC
Number of Poles
3 Pole
Operating Cycles
6k
Rated Power
15 kW
Size
2.52 in
Standard
CSA C22.2 No 4,IEC 60947-3,UL98
TC Connection
LUGS-RING TERMINALS 1 4-4 MMA
Type
Non-fusible disconnect switch;Disconnect Switch
Voltage
600 Volt
Wattage
15 kW 400 Volt-18.5 kW 500 Volt-25 kW 690 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
TeSys LK

General Product Info

12-Digit UPC
606480510413
GTiN
03606480510410
Product UPC
78590133346

Dimensions

Depth
64 mm
Height
125 mm
Warranty Length
18 mth
Width
79.5 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Certifications
CE,CSA,UL
Country of Origin
China
