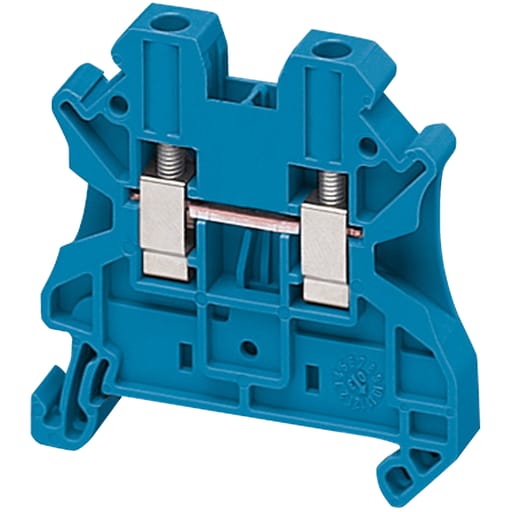

Square-D / Schneider - Square D NSYTRV42BL 4 mm 2-Point Blue 26 to 10 AWG Solid/Stranded Copper Screw Terminal Block

CopyCopy
Square-D / Schneider - Square D NSYTRV42BL 4 mm 2-Point Blue 26 to 10 AWG Solid/Stranded Copper Screw Terminal Block

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 606480531906

  • Amperage - 32 Amp

  • Applications - LINERGY,SPACIAL ENCLOSURES,CONNECTION ACCESSORY,TERMINAL BLOCK

  • Catalog Number - NSYTRV42BL

  • Color - Blue

Packaging

  • 1 ea

EAN

03606480531903

Part #

141591

Catalog #

NSYTRV42BL

Commercial reference

NSYTRV42BL

12-Digit UPC:

606480531906

Amperage:

32 Amp

Applications:

LINERGY,SPACIAL ENCLOSURES,CONNECTION ACCESSORY,TERMINAL BLOCK

Catalog Number:

NSYTRV42BL

Color:

Blue

Country of Origin:

China

ERP_productname:

SQD NSYTRV42BL SCREW TERMINAL, 2PTS, 4MM BLUE

Family Brand Name:

Schneider Electric

Heights:

47.5 mm

Length:

47.7 mm

Material:

Chromium-nickel Steel,Copper Alloy,Polyamide

Mounting Type:

Clip-On

Size:

47.5 MM,47.7 MM,6.2 MM

Sub Brand:

LINERGY,TRV

Tc Connection:

1 X SCREW TERMINAL UPSTREAM M3)-1 X SCREW TERMINAL DOWNSTREAM M3)

Type:

SPACIAL ENCLOSURES,PASSTHROUGH,TERMINAL BLOCK

Voltage:

1000 Volt

Widths:

6.2 mm

Wire Size:

0.14-6 MMA., SOLID WITH CABLE END-0.2-4 MMA., FLEXIBLE WITH CABLE END-0.2-6 MMA., SOLID WITHOUT CABLE END-0.2-6 MMA., FLEXIBLE WITHOUT CABLE END,4 MMA.

SoneparProductId:

SKU_US_69987292

Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 4 mm. nominal cross section. The rated operational voltage is 600V conforming to CSA/cURus, 1000V conforming to EN/IEC 60947-7-1 and 690V conforming to ATEX Exe II Ex II 2 GD. The rated current is 32A conforming to EN/IEC 60947-7-1, 30A conforming to CSA/cURus and 30A conforming to ATEX Exe II Ex II 2 GD. It has blue surface treatment. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 .C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC). It is compliant with Green Premium (RoHS/REACH). Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: NSYTRAAB35; NSYTRAB610; NSYTRV42; NSYTRAABV35; NSYTRAB620; NSYTRV42AR; NSYTRAB630; NSYTRAC22; NSYTRV42BK; NSYTRAB640; NSYTRV42GN; NSYTRAB650; NSYTRAP22; NSYTRV42RD; NSYTRAL42; NSYTRV42PE; NSYTRAL43; NSYTRV42WH; NSYTRAB680; NSYTRAL44; NSYTRAL45; NSYTRAL410; NSYTRAB61100; NSYTRAL420; NSYTRAB6L1N; NSYTRAL410BL; NSYTRABPV6; NSYTRAL410GR; NSYTRAATM1; NSYTRAATP1; NSYTRAFT; NSYTRACS4; NSYTRASB4; NSYSDR200BD; NSYTRABCV35
