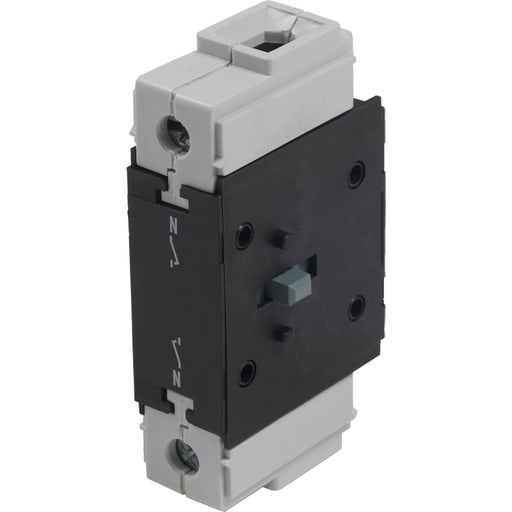

Square D VZ12 690 VAC 80 Amp 1NO Add-On Contact Module

Manufacturer: Square-D / Schneider | Catalog # VZ12 | Echo Electric Part # 108312
$77.15/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
VZ12 is an add-on neutral pole module for TeSys Vario switch-disconnector from Schneider Electric. Rated 63A to 80A 690V, to be used with V3 and V4 switch bodies. Contacts with early make and late break action. Available worldwide, multi-standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHs/Reach). Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Technical Information

Amperage
63-80 Amp
Applications
NEUTRAL POLE MODULE
Contact Configuration
1 NO
Contact Rating
EARLY MAKE, LATE BREAK
Enclosure
IP20 CONFORMING TO IEC 60529
Net Weight
0.1 kg
Number of Poles
1 Pole
Operating Cycles
30000 CYCLES DC-1...530000 CYCLES AC-21
Operating Temperature
-20-50 Adegrees C
Range
TeSys
Size
20 MM,46 MM,83 MM
Standard
IEC 60947-3
TC Connection
SCREW CLAMP TERMINALS CABLE 16 MMA - CABLE STIFFNESS: FLEXIBLE - WITH CABLE END CABLE ENDSCREW CLAMP TERMINALS CABLE 25 MMA - CABLE STIFFNESS: SOLID -
Type
LOADBREAK SWITCH ADD-ON MODULE
Voltage
690 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
VARIO

General Product Info

12-Digit UPC
389110551917
GTiN
03389110551914
Product UPC
78590142049
Weight
0.1 kg

Dimensions

Depth
46 mm
Height
83 mm
Warranty Length
18 mth
Width
20 mm

Certifications and Compliance

Certifications
CSA,GL,UKCA,UL
Country of Origin
Czechia
Compatible Products
  • VCF3
  • V3
  • VCCF3
  • VZ27
  • VCF4
  • V4
  • VCCF4
  • VBF3
  • VCF4GE
  • VCF3GE
  • VBF4
  • VVD3
  • VBF3GE
  • VBF4GE
  • VC4GUN
  • VVE3
