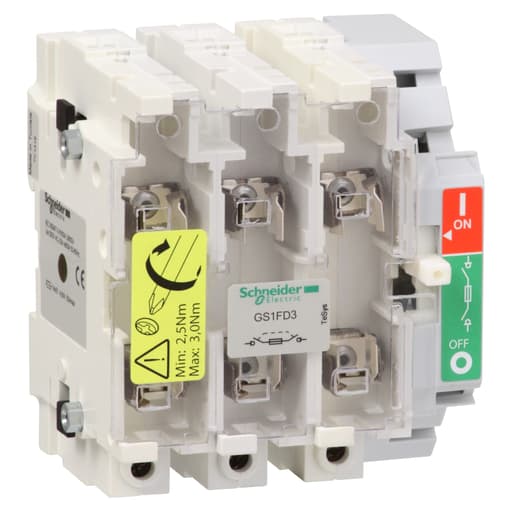

SQUARED GS1FD3 Switch disconnector

Manufacturer: Square-D / Schneider | Catalog # GS1FD3 | Echo Electric Part # 103557
$1,141.80/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
TeSys GS fuse switch-disconnector, 3 poles (3P), 50A/750V, to be used with NFC cylindrical fuse links size 14x51mm up to 50A, for motor applications up to 25kW@400V AC-23. To be equipped with a direct operating handle GS1AH01 (to be ordered separately), for using an external operating handle select a fuse switch-disconnector type GS2F. It provides screw terminals with 3P terminal shrouds, high short circuit current rating 100kA@400V. Add-on auxiliary contact modules GS1AM (front mounting), GS1AN (side mounting), GS1AF (top mounting for blown signaling with stricker fuses) can complete the assembly (to be ordered separately). Type aM and gG 14x51mm cylindrical fuse links without strickers DF2EA, DF2EN and with strickers DF3EA, DF3EN are available (to be ordered separately). Multi standards certified (IEC, Marine), Green Premium compliant (RoHS/REACh).

Technical Information

Amperage
40 Amp 440 V 2 POLES IN SERIES PER PHASE DC-23A-40 Amp 440 V 2 POLES IN SERIES PER PHASE DC-23B-50 Amp 400 V AC-23A-50 Amp 400 V AC-23B-50 Amp 500 V AC-23A-50 Amp 500 V AC-23B-50 Amp 690 V AC-23A-50 Amp 690 V AC-23B
Applications
PROTECTION
Contact Configuration
3 NO
Enclosure
IP20 WITH TERMINAL COVER CONFORMING TO IEC 60529
Fuse Type
NFC
Interrupt Rating
400 AIC
Net Weight
0.8 kg
Number of Poles
3 Pole
Operating Cycles
1500 CYCLES ON AC-23A-1500 CYCLES ON AC-23B-300 CYCLES ON DC-23A-300 CYCLES ON DC-23B
Operating Temperature
-20-70 Adegrees C
Range
TeSys
Size
118 MM,118 MM,87 MM
Standard
IEC 60947-3
Storage Temperature
-40-80 degrees C
TC Connection
POWER CIRCUIT LUGS-RING TERMINALS 6-25 MMA FLEXIBLE
Type
SWITCH-DISCONNECTOR-FUSE
Wattage
25 kW 400 Volt-33 kW 500 Volt-45 kW 690 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
GS1 F,TESYS GS

General Product Info

12-Digit UPC
785901288619
GTiN
03389110253887
Product UPC
78590128861

Dimensions

Depth
87 mm
Height
118 mm
Warranty Length
18 mth
Width
118 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
