Product image for LCAN EFB45CTCBZ EVO FLR BX SRF CVR
Email

LCAN EFB45CTCBZ EVO FLR BX SRF CVR

Manufacturer: The Wiremold Co | Catalog # EFB45CTCBZ | Echo Electric Part # 318025
$702.67/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet CAD Drawing #1 CAD Drawing #2

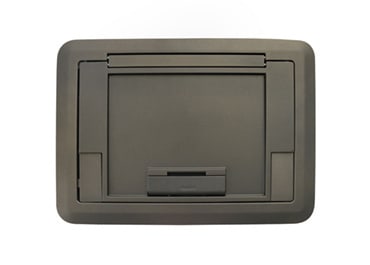

Low profile cover designed to attach to the EFB45S style floor boxes. Each cover is made of die-cast aluminum and is equipped with a durable hinge which allows the cover to rotate open 180° and two (2) slide egress doors that lock in the open position and automatically close around the cables when the cover is closed. The cover assemblies are designed to work with finished floors such as carpet tile and wood. In order to make the cover assembly flush with the polished concrete or terrazzo floor, the EFB45-CTR (concrete/terrazzo) ring must be used (ring sold separately). The cover assemblies are available in three (3) powder coat finishes: black (BK) gray (GY)and bronze (BZ) and three (3) durable finishes  satin brass (SB) satin nickel (SN) and brushed aluminum (AA)

Technical Information

Applications
Commercial
Material
Aluminum
Size
1-3/16 x 9-15/16 x 13-7/8
Type
Floor Box

Manufacturer Information

Brand
Legrand
Sub Brand
Wiremold

General Product Info

12-Digit UPC
786564086338
Color
Bronze
Construction
Assembled
Finish
Powder Coated
GTiN
00786564086338
Product UPC
78656408633
Weight
6.9 lb

Dimensions

Height
1.188 Inch
Length
13-7/8 Inch
Width
9.938 in

Certifications and Compliance

Certifications
CULUS,ROHS
Country of Origin
India
Features
  • Die cast aluminum cover assemblies.
  • Floor Box Covers have been designed to work on multiple floor surfaces and are manufactured from die cast aluminum to provide strength and style
  • Decorative powder coat colors (black gray) and durable finishes (brushed aluminum, satin brass, satin nickel) will complement any room dcor
  • Hinge design enables covers to open a full 180° and lie flat on the floor surface with the durability to support a large cover. Provides easy access to all interior modules and activations while reducing tripping hazards.
  • Auto-close egress doors. Cable egress doors lock in position when open and automatically closes around wires to protect cabling and reduce trip hazards.
Certifications
  • RoHS Compliant
  • cULus Listed
