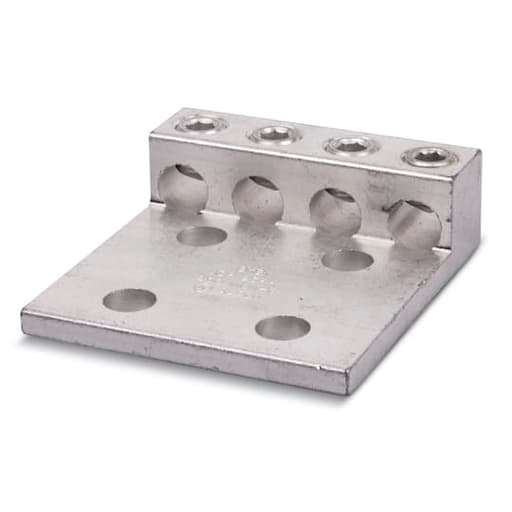

Blackburn ADR35-44 4-Hole Mount

Manufacturer: Thomas & Betts Co | Catalog # ADR35-44 | Echo Electric Part # 145195
$20,733.83/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Product Catalog Page
Type ADR-ALCUL Four-Conductor, Four-Hole Mount for Conductor Range Max 350 kcmil, Min 6 Str.

Technical Information

Conductor Size
6 AWG-350 kcmil
Conductor Type
Copper
Material
Aluminum
Number of Conductors
4
Standard
UL E9809
Type
Dual Rated

Manufacturer Information

Brand
Thomas & Betts (T&B)
Sub Brand
Blackburn®

General Product Info

12-Digit UPC
783786610266
Finish
Tin Plated
GTiN
00783786610266
Product UPC
78378661026

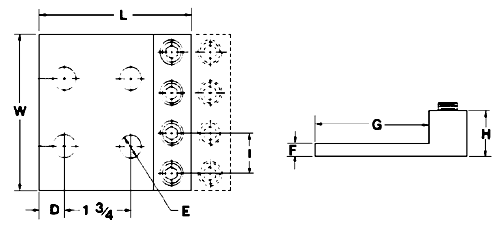

Dimensions

Height
1-3/8 Inch
Length
4-1/4 Inch
Width
4-23/32 in
Notes
  • Connectors accomodating conductors 600 kcmil and larger have double rows of set screws (D suffix).
  • NEMA spacing 1 3/4 inch centers.
  • UL 486B tested, AL9CU rated
Certifications
  • CSA
  • UL
Features
  • Easy Installation - no special tools required.
