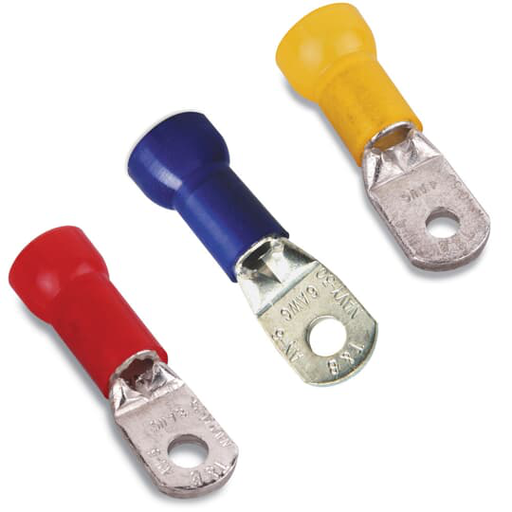

Thomas & Betts RG2-516 5/16 Inch 2 AWG Red Insulated Nylon Ring Terminal

Manufacturer: Thomas & Betts Co | Catalog # RG2-516 | Echo Electric Part # 118713
$1,493.91/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet

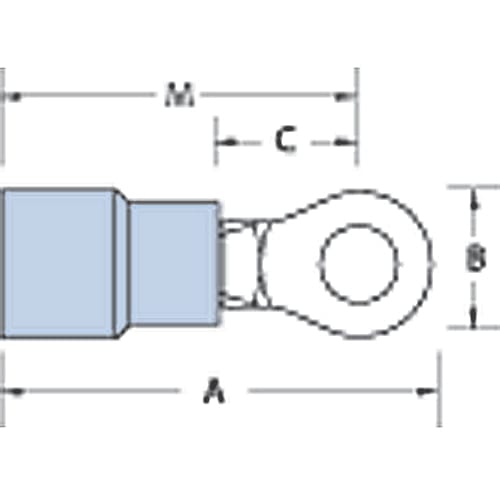

Nylon Insulated Large Ring Terminal, Length 2.15 Inches, Width .69 Inches, Maximum Insulation .588, Bolt Hole 5/16 Inch, Wire Range 2, Color Red, Copper, Tin Plated

Technical Information

Barrel Type
Serrated
Conductor Size
2-1 AWG
Flamability Class
Rated V-2 Per UL94
Insulation Material
Nylon
Insulation Type
Insulated Nylon
Material
Copper
Standard
UL E9809
Stud Size
5/16 in
Temperature Rating
105 degrees C
Terminal Type
RG
Type
Insulated, Short Sleeve
Voltage
600 Volt
Wire Size
2 AWG

Manufacturer Information

Brand
Thomas & Betts (T&B)
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210878751
Color
Red
Finish
Electro Tin Plated
GTiN
05415022255225
Product UPC
78621087875

Dimensions

Height
3 Inch
Thickness
.05 in
Width
1.3 in
Certifications
  • CSA
  • UL
Features
  • Funneled Barrel Entry, Deep Internal Serrations, Brazed or overlapping seams.
Notes
  • Not available on Mylar Tape.
