U.S. Electric Motors / Nidec - US Motors BMU2P2DCR 2HP, 1750 & 1430RPM, 208-230/460 & 190/380V
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786382118563
Amperage - 5.9-5.7/2.8 Amp
Catalog Number - BMU2P2DCR
Country of Origin - Mexico
Current - 5.9-5.7/2.8 Amp
Packaging
1 ea
EAN
Part #
122456
Catalog #
BMU2P2DCR
Commercial reference
BMU2P2DCR
12-Digit UPC:
786382118563
Amperage:
5.9-5.7/2.8 Amp
Catalog Number:
BMU2P2DCR
Country of Origin:
Mexico
Current:
5.9-5.7/2.8 Amp
ERP_productname:
USEM BMU2P2DCR 2 HP 1750 & 1430 RPM BMU2P2DCR 208-230/460 & 190/380 V 60 & 50 HZ 145TC
Enclosure Type:
TEFC
Family Brand Name:
U.S. Electric Motors / Nidec
Frame:
145TC
Horsepower:
2 hp
Mounting Type:
HORZ-FOOTLESS
Number of Phases:
3 Phase
Number of Poles:
4 Pole
Voltage:
190/380 Volt
Wattage:
1.492 kW
SoneparProductId:
SKU_US_315897825

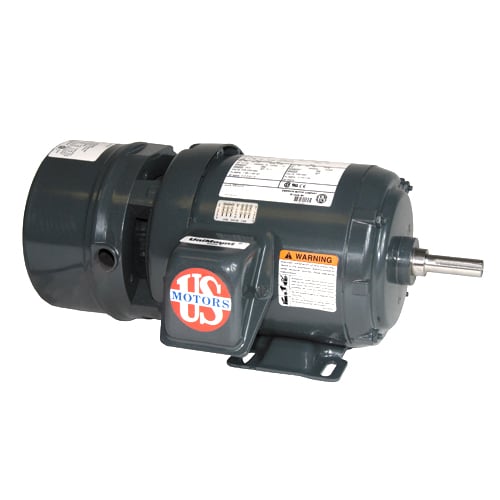

Fully assembled, toally enclosed fan cooled motor and brake premieres the key features of a U.S. MOTORS ® brand UNIMOUNT® motor and Stearns® . brake. Available in both footed and c-face footless ratings, the motor is designed for use on conveyors, machine tools, door operators, speed reducers or other applications that require stops and positive holds. UNIMOUNT(R) Brake motors are built to help extend the life of the motr. each motor is built to include the ALLGUARD(R) motor quality system, including pulse resistant/abrasion wire and 100% solids polyester varnish.
