Hubbell HBL415GY 15 Amp 125 Volt 2-Pole 3-Wire NEMA 5-15R Gray Straight Blade Receptacle

Manufacturer: Hubbell Wiring Device | Catalog # HBL415GY | Echo Electric Part # 102347
$41.33/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, 4- Plex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5- 15R, Gray, Single Pack.

Technical Information

Amperage
15 Amp
Applications
Industrial
Base Material
PBT
Conductor Size
14-12 AWG
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Polycarbonate
Grade
Industrial
Grounding
Grounding
Horsepower
0.50 hp
Material
Thermoplastic
Mounting Type
Screw, Recessed/Flush
NEMA
5-15R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA 22.2,NEMA® WD-6,No. 42 File 285,UL Standard 498 File E2186
TC Connection
Screw, 6 Terminals
Type
Quad Receptacle
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
3
Wire Size
14-12 horse power

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585014500
Color
Gray
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTiN
00783585014500
Product Series
4-Outlet Receptacle
Product UPC
78358501450
Weight
0.4 lb

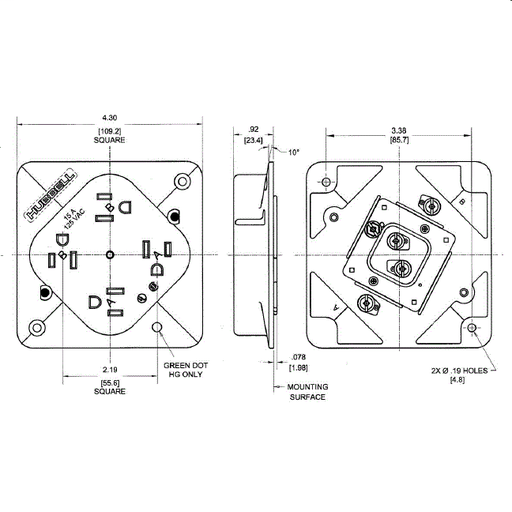

Dimensions

Height
4.3 Inch
Length
4.3 Inch
Width
0.92 in

Certifications and Compliance

Country of Origin
USA
Features
  • Anchor hole and loop feature secures solid wire for fast, easy terminations
  • Triple wipe contacts
  • Easily accessible break-off tabs for split wiring
  • Three conductors energize all four outlets
  • 4 Receptacles in one
