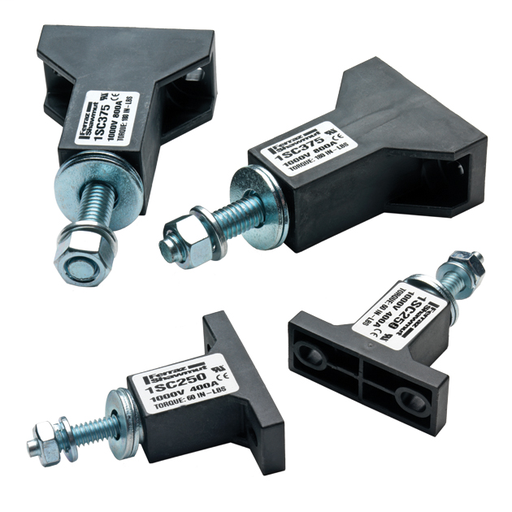

Product image for Mersen 1SCM8 MODULAR FBLKM8 STUDPAI
Email

Mersen 1SCM8 MODULAR FBLKM8 STUDPAI

Manufacturer: Ferraz Shawmut | Catalog # 1SCM8 | Echo Electric Part # 105206
$60.48/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet
Mersen 1SC and 1MSC semiconductor fuse blocks feature modular mounting that offers greater flexibility in adjusting to various fuse lengths. Both stud type and integral box connector versions are offered to allow for user preference of wire terminations. The integral box connector versions also provide for greater heat dissipation. Mounting hardware is supplied with the blocks

Technical Information

Amperage
400 Amp
Frequency
50 Hz
Fuse Class
Semiconductor
Fuse Interrupt Rating
400 A
Fuse Type
Semiconductor
Insulation Material
Thermoplastic
Max Operating Temperature
80 degrees C
Mounting Type
Direct Screw Mount
Number of Poles
1 Pole
Rated Voltage AC
1500 V
Rated Voltage DC
1500 V
Short Circuit Current Ratng
200000 A
TC Connection
Stud
Torque
190 lb-in
Torque Rating
190 lb-in
Type
Semiconductor Fuseholders And Blocks
Voltage
1500 Volt

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Ferraz Shawmut Canada, Inc.

General Product Info

12-Digit UPC
782001376529
GTiN
00782001376529
Product UPC
78200137652
Weight
0.2 lb

Dimensions

Height
0.7 Inch
Length
1.87 Inch
Width
2.45 in

Certifications and Compliance

Country of Origin
Mexico
Features
  • Modular two-piece design
  • Compact footprint
  • Stud versions
  • Heat dissipating integral box connector versions
  • Accommodates a large range of semiconductor fuses
  • Rugged phenolic insulators
Certifications
  • UL Recognized Component File E52283
