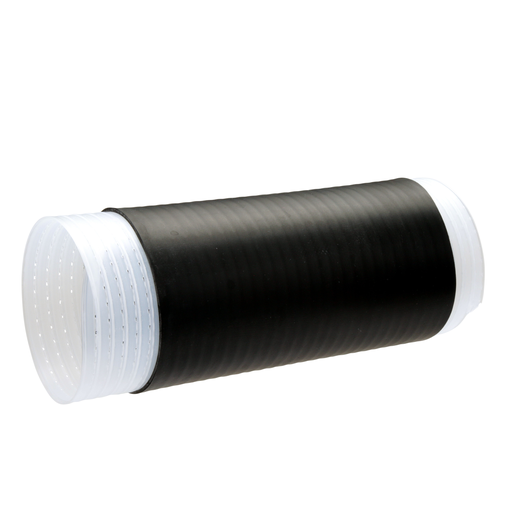

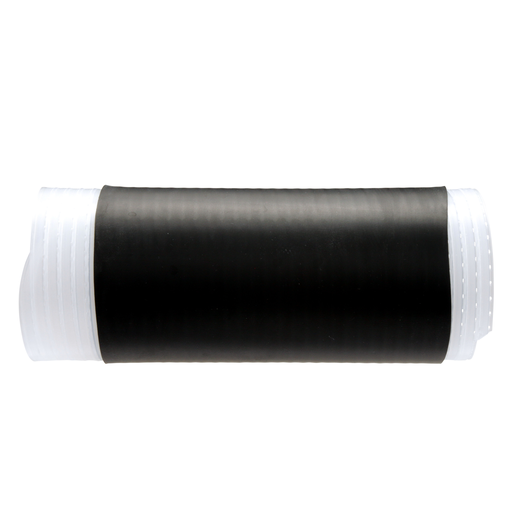

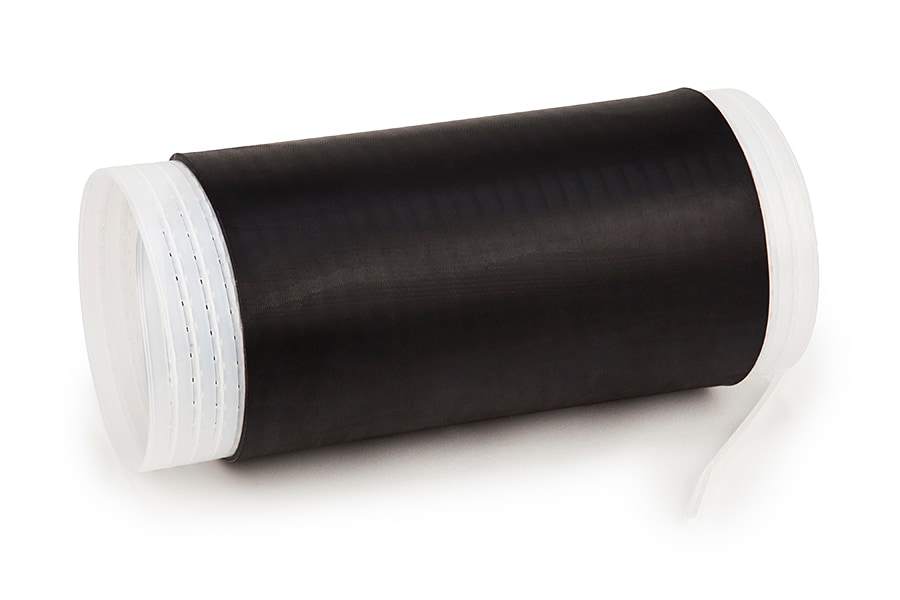

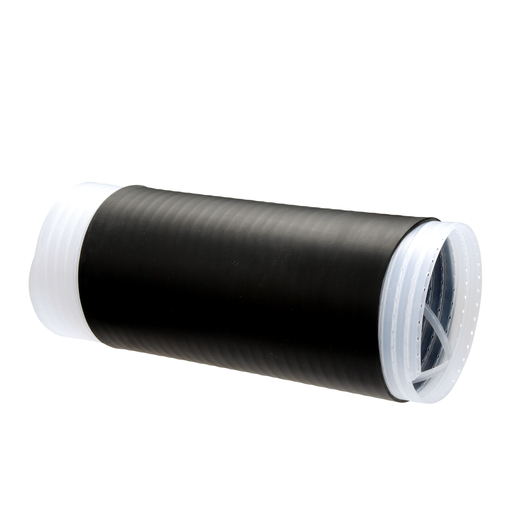

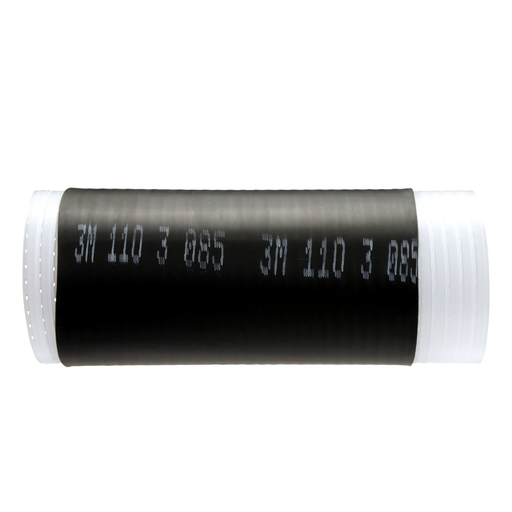

Product image for 3M Electrical 8430-9 Cold Shrink Connector Insulator
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

3M Electrical 8430-9 Cold Shrink Connector Insulator

Manufacturer: 3M | Catalog # 7100002713 | Echo Electric Part # 105406
$7,868.79/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Safety Data Sheet
3M™ Cold Shrink Insulators are open-ended, tubular, EPDM rubber sleeves which are factory expanded and assembled onto a removable core. The core is removed after the tube has been positioned for installation over an inline connection, terminal lug, etc., allowing the tube to shrink and form a water-resistant seal.

Technical Information

Applications
Insulation,Mechanical Protection,Repair
Cable Type
Power Cable
Material
Rubber
Max Operating Temperature
194.0 degrees F
Min Operating Temperature
-40.0 degrees C
Number of Conductors
1
Operating Temperature
-40 degrees C
Shielding Type
Non-shielded,Tape Shield,UniShield®,Wire Shield
Shrink Ratio
2:1
Size
1250 kcmil; 1500 kcmil; 1750 kcmil; 2000 kcmil
Splice Type
Cold Shrink
Type
Cold Shrink Splice
Voltage
1 kV

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
054007421474
Color
Black
GTiN
00054007421474
Product Type
Cold Shrink
Product UPC
05400742147

Dimensions

Diameter
94 mm
Overall Length
229.0 mm

Certifications and Compliance

Country of Origin
USA
Features
  • Specially designed for primary insulation of solid dielectric insulated wires and cable splicing rated to 1000 volts
  • Simple installation which requires no tools
  • Sealing of terminal lug barrels, conduit couplings and conduit-to-cable breakouts
  • Made of EPDM rubber which contains no chlorides or sulfur
  • Covers a wide range of cable cross sections
  • Withstands temperatures of -40 to 90 degC (-40 to 194 degF)
