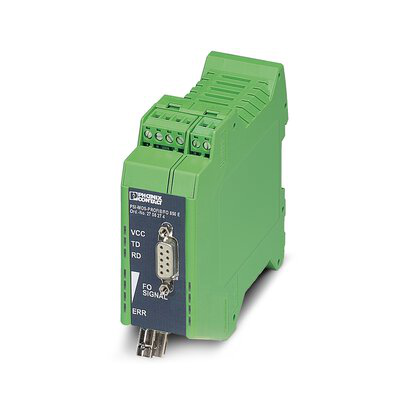

Product image for PHNX 2708274 PSI-MOS-PROFIB/FO 850 E
Image thumbnail 0
Image thumbnail 1
Email

PHNX 2708274 PSI-MOS-PROFIB/FO 850 E

Manufacturer: Phoenix Blocks | Catalog # 2708274 | Echo Electric Part # 106499
$1,505.07/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
FO converter with integrated optical diagnostics, alarm contact, for PROFIBUS up to 12 Mbps, terminal device with one FO interface (BFOC), 850 nm, for PCF/fiberglass cable (multimode)

Manufacturer Information

Brand
Phoenix Contact

General Product Info

12-Digit UPC
179189739718
Product UPC
17918973971

Dimensions

Depth
106 mm
Height
99 mm
Width
35 mm

Certifications and Compliance

Country of Origin
Germany
Features
  • Connections can be plugged in using a COMBICON screw terminal block
  • Can be combined with the PSI copper repeater in a modular way using DIN rail connectors
  • Supply voltage and data signals routed through via DIN rail connectors
  • Automatic data rate detection or fixed data rate setting via DIP switches
  • High-quality electrical isolation between all interfaces (PROFIBUS // fiber optic ports // power supply // DIN rail connector)
  • Redundant power supply possible by means of optional system power supply unit
  • Approved for use in zone 2
  • Integrated optical diagnostics for continuous monitoring of fiber optic paths
  • Intrinsically safe fiber optic interface (Ex op is) for direct connection to devices in zone 1
  • Floating switch contact for leading alarm generation in relation to critical fiber optic paths
  • Suitable for all data rates up to 12 Mbps
  • Bit retiming for any cascading depth
  • Shipbuilding approval in accordance with DNV GL
Approvals
  • cULus Listed
  • EAC
  • cULus Recognized
  • DNV GL
  • UL Listed
  • cUL Listed
  • UL Recognized
  • cUL Recognized
