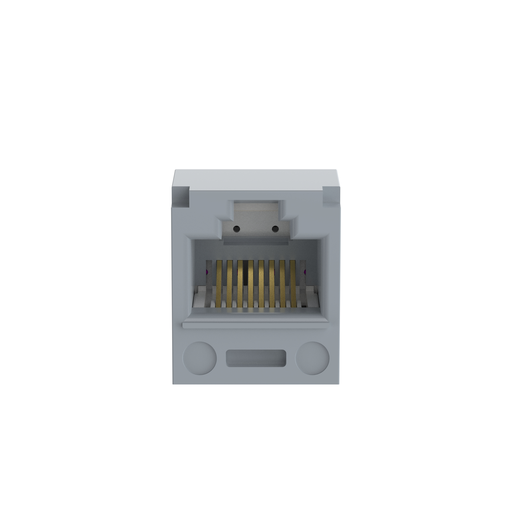

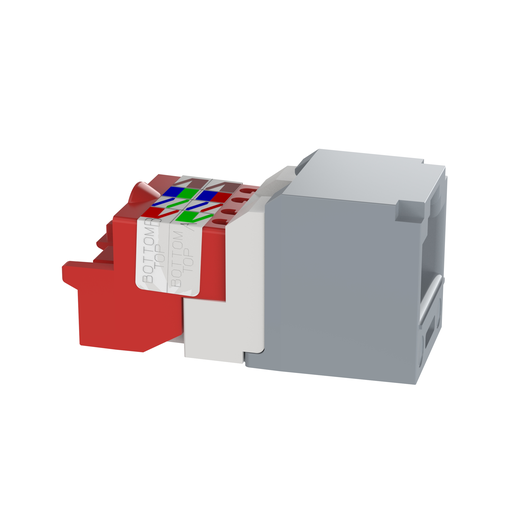

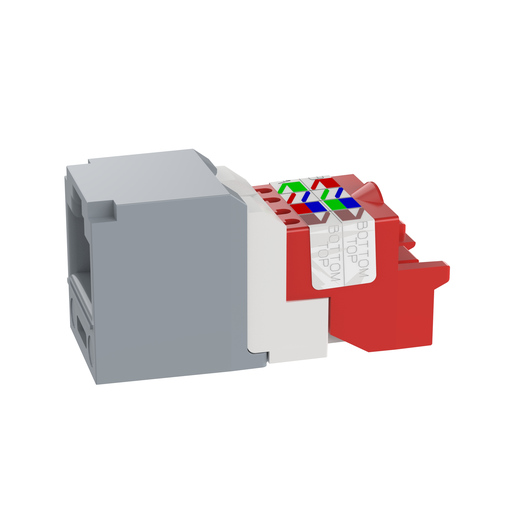

Product image for Panduit CJ5E88TIG UTP RJ45 Cat 5e TP-Style Jack Module, Int'l Gray
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Panduit CJ5E88TIG UTP RJ45 Cat 5e TP-Style Jack Module, Int'l Gray

Manufacturer: Panduit Corp | Catalog # CJ5E88TIG | Echo Electric Part # 106913
$26.26/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Buy American Compliant Buy American Compliant Product Spec Sheet Installation / Instruction Manual
The Mini-Com® Cat 5e UTP RJ45 TP-Style Jack Module is designed to terminate 4-pair, 22-24 AWG twisted pair cable. Each module is 100% factory tested for continuity. Contacts are plated with 50 microinches of gold for superior performance. Jack modules are compatible with Mini-Com Modular Patch Panels and Faceplates. The jack module is International Gray.

Technical Information

Applications
Unshielded
Cable Entry
T568A/T568B
Cable Type
Category 5e
Material
ABS Plastic
Max Operating Temperature
149 degrees F
Min Operating Temperature
-10 degrees C
Number of Positions
8
Performance Level
Category 5e
Type
Unshielded

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Mini-Com

General Product Info

12-Digit UPC
074983771356
Color
Gray
GTiN
00074983771356
Product UPC
07498377135
UNSPSC
43223301

Dimensions

Depth
1.43 Inch
Height
0.71 Inch
Overall Length
1.43 in
Width
15.7 mm

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Standards and Certifications
  • Standards Met: Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
