3M 5553 Cold Shrink 5 KV (3 Splices/Kit) Rubber Splice Kit

Manufacturer: 3M | Catalog # 7000021419 | Echo Electric Part # 108524
$231,134.72/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Safety Data Sheet Product Catalog Page

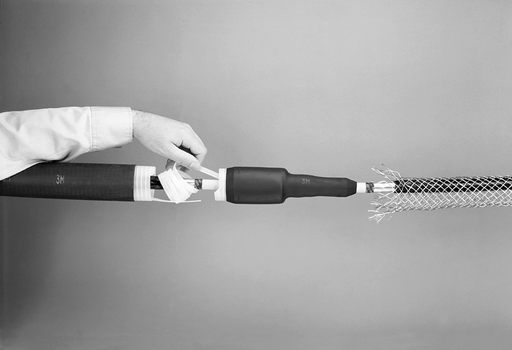

The 3M™ Cold Shrink Rubber Splicing Kit contains all the materials (except connectors and optional ground strap) required to construct three single conductor splices on tape shield, wire shield or UniShield® Cables.

Technical Information

Applications
Cable Connection
Cable Size
1000 kcmil; 500 kcmil; 750 kcmil
Conductor Size
500 kcmil
Material
Rubber
Number of Conductors
1
Splice Type
Cold Shrink
Type
Inline Splice
Voltage
5 kV

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
054007090915
Color
Black
GTiN
00054007090915
Product Series
5550 Series
Product Type
Splice
Product UPC
05400709091

Dimensions

Length
23 Inch
Overall Length
23.0 in

Certifications and Compliance

Country of Origin
USA
Features
  • Provides splicing on tape shield, wire shield and UniShield® cables
  • This kit is suitable for use on solid dielectric cables, indoor or outdoor locations and direct-burial applications
  • Insulator and jacket is made of EPDM for easy installation
  • Rated for 5/8 kV applications
  • IEEE Approved
