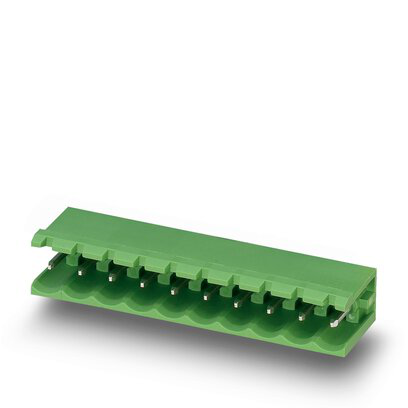

Product image for PHNX 1759059 MSTB 2 5/ 6-G-5 08
Image thumbnail 0
Image thumbnail 1
Email

PHNX 1759059 MSTB 2 5/ 6-G-5 08

Manufacturer: Phoenix Blocks | Catalog # 1759059 | Echo Electric Part # 108842
$2.65/ea
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
PCB headers, nominal cross section: 2.5 mm², color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, type of contact: Male connector, number of potentials: 6, number of rows: 1, number of positions: 6, number of connections: 6, product range: MSTB 2,5/..-G, pitch: 5.08 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.5 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5, Pin connector pattern alignment: Standard, locking: without, mounting: without, type of packaging: packed in cardboard

Technical Information

Contact Type
Male Connector
Current
12 Amp
Mounting Type
Wave Soldering
Number of Connections
6
Number of Positions
6
Number of Rows
1

Manufacturer Information

Brand
Phoenix Contact

General Product Info

12-Digit UPC
179180305202
Color
Green
Product UPC
17918030520

Dimensions

Height
12.1 mm
Length
12 mm
Width
30.48 mm

Certifications and Compliance

Country of Origin
Germany
Features
  • Maximum flexibility when it comes to device design one header for connectors with different connection technologies
  • Easy PCB replacement thanks to plug-in modules
  • Well-known mounting principle allows worldwide use
  • Plug-in direction parallel to the PCB
  • Items that can be aligned in various pitches support flexible and space-saving PCB assembly
Approvals
  • VDE Zeichengenehmigung
  • EAC
  • IECEE CB Scheme
  • CSA
  • cULus Recognized
