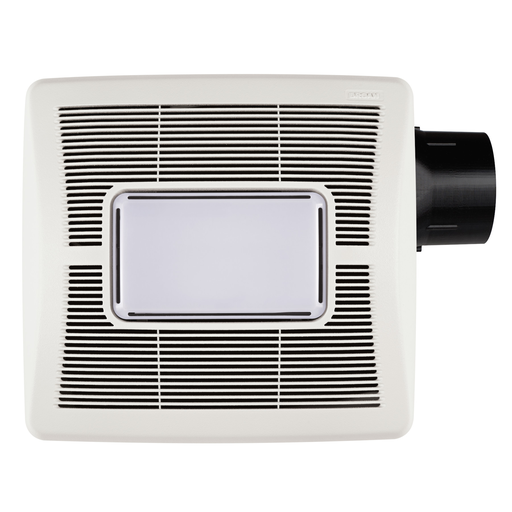

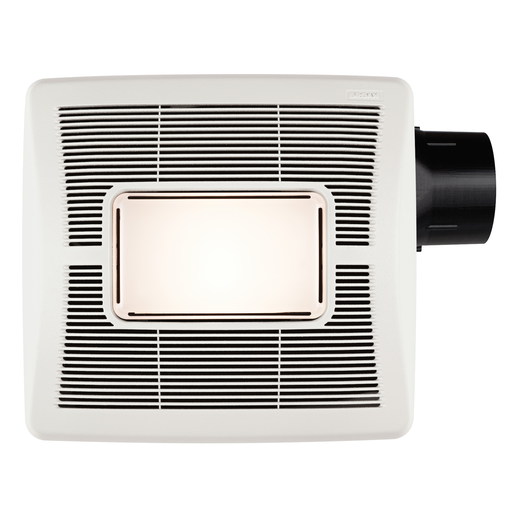

Broan A110L 1.2 Amp 110 CFM 1.3 Sones 11-1/2 x 12-1/8 Inch Grille Ventilation Fan with Lamp

Manufacturer: Nutone | Catalog # A110L | Echo Electric Part # 109412
$114.00/ea
ea
Log in or register to view your price, purchase history, and more!
10 available

For Pick Up

at Springfield, IL Opens Monday 7:00am CT
15 available

For Delivery

Not in local stock *
Check another branch
Product Spec Sheet Installation / Instruction Manual
The Broan® Flex Series A110L White 110 CFM Exhaust Bath Fan with Light offers easy, room side installation with no attic access required. This ceiling-mounted ventilation fan features foldable mounting ears and an EzDuct™ connector for easy installation. The design complements any decor.

Technical Information

Airflow Rate
110 CFM
Amperage
1.2 Amp
Bulb Included
No
Duct Shape
Round
Duct Size
4 in
Light Type
Incandescent
Mounting Type
Ceiling
Nightlight
No
Voltage
120 Volt
Wattage
23.4 Watt

Manufacturer Information

Brand
Broan-NuTone

General Product Info

12-Digit UPC
026715235339
Color
White
Housing Material
Galvanized
Product UPC
02671523533
Weight
9.6 lb

Dimensions

Grille Length
11-7/16 in
Grille Width
12-1/8 in
Height
8-1/2 Inch
Housing Height
5-3/4 in
Housing Width
10 in
Length
12-1/8 Inch
Warranty Length
3 yr
Width
11.5 in

Certifications and Compliance

Country of Origin
USA
Features
  • 110 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
  • 1.3 Sones for Quiet performance, enough sound to know your fan is on
  • 100-Watt maximum incandescent A19 type bulb or energy efficient equivalent bulb with maximum overall length of 4.4 in. or less (bulb not included)
  • Retrofit installations can be done entirely from the room-side, no attic access required. This means a faster, easier installation
  • EzDuct™ connector can be installed from the room side, with no attic access required
  • TrueSeal™ Damper technology reduces air leakage up to 50%
  • SnapFit Flange Kit offers flexible installation for new construction or retrofit upgrades
  • Foldable mounting ears allow for easy installation in both new construction and room-side replacement applications
  • UL listed for use over tub or shower when connected to a GFCI-protected branch circuit
  • Powerful enough for rooms up to 105 sq. ft.
  • Brighter white grilles blend in to match most common ceiling paint

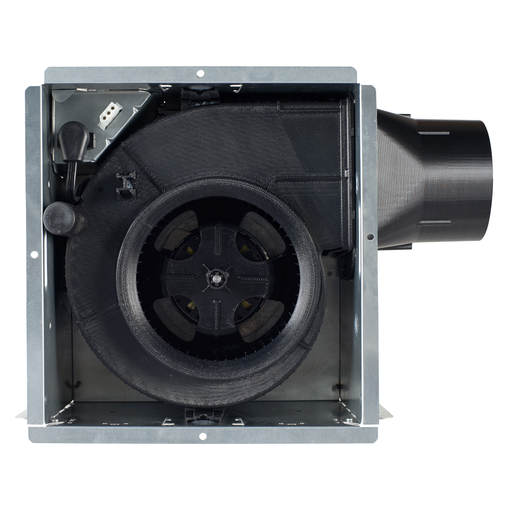

  • Corrosion resistant galvanized steel housing stands up to moisture
  • Permanently lubricated AC motor engineered for continuous operation
  • Quiet exhaust fan with incandescent light combo
  • Powerful enough for rooms (including bathroom) up to 105 sq. ft.
  • Easy to install new / replace existing product from the roomside
Includes
  • Non-metallic damper/duct connector
