Product image for Caddy CAT16HP Data Cable J-Hook, Wall Mount, 1" dia, 20 Cat5e / 15 Cat6 Capacity, 60lb Load Capacity, Spring Steel
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

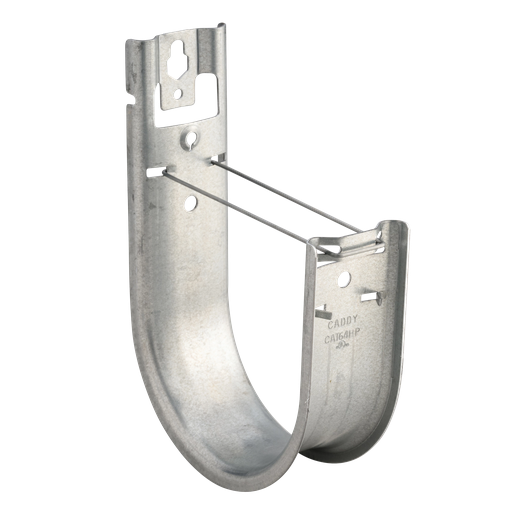

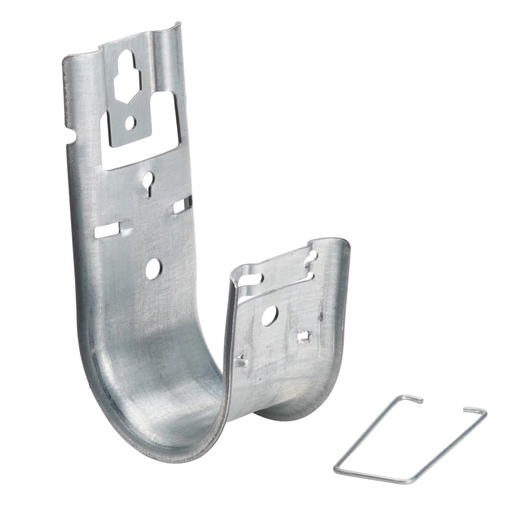

Caddy CAT16HP Data Cable J-Hook, Wall Mount, 1" dia, 20 Cat5e / 15 Cat6 Capacity, 60lb Load Capacity, Spring Steel

Manufacturer: Erico, Inc | Catalog # CAT16HP | Echo Electric Part # 109601
$548.69/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Springfield, IL Opens Monday 7:00am CT
1,315 available

For Delivery

Not in local stock *
Check another branch
Product Spec Sheet Product Catalog Page
Non-continuous pathway support solution with a wide base design and smooth beveled edges to provide a large bending radius for high-performance data cables and fibre optics. Provides optimal support for high-performance data cable, including CAT7 and fibre optics. 1" (25 mm) diameter.

Technical Information

Applications
For High-Performance Data Cable Including Cat5e, Cat6, Cat6A, Cat7, Fibre Optic, Datacom and Low Voltage, Electrical Fixing and Fastening
Load Capacity
60 lb
Material
Steel
Size
1 in dia
Trade Size
1 Inch
Type
CADDY® CAT HP J-Hook

Packaging

Standard Packaging Qty
50/Pack

Manufacturer Information

Brand
nVent Caddy
Sub Brand
CADDY

General Product Info

12-Digit UPC
782856617600
Finish
Pregalvanized
GTiN
00782856617600
Product UPC
78285661760
Weight
0.08 kg
Certifications
  • cUL CAN/CSA C22.2 No. 18.4-04
  • DIN 4102-12 abP DIN 4102-12
  • UL ANSI/UL 2239
Features

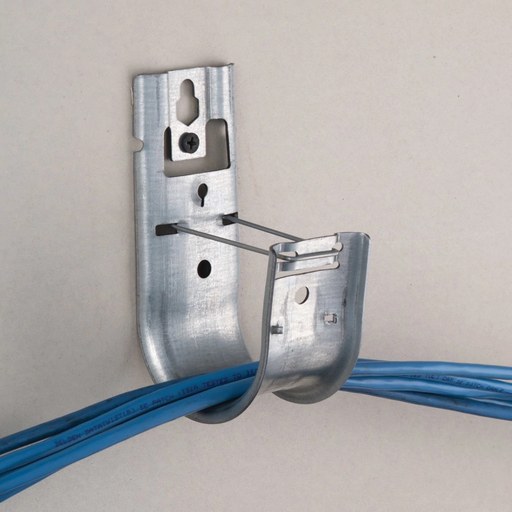

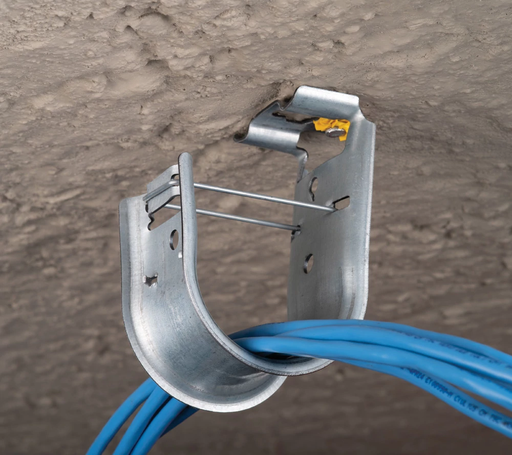

  • Versa-Mount Technology: Innovative attachment design provides multiple structural and installation methods for wall, ceiling, and threaded rod mounting applications
  • Ideal for unknown jobsite applications or attachment methods
  • Improved design allows for optimized inventory while reducing job site scheduling risks associated with multiple SKUs
  • Provides optimal support for high-performance data cableincluding category cable, Power over Ethernet (PoE), and fiber optic
  • Industry-leading bend radius designed to protect high-performance data installations
  • Multiple color options aid in the identification and organization of the pathway application
  • Provides superior fill capacity and load rating
  • Compliant with UL® 2043 and suitable for use in air handling (plenum) spaces
  • Meets ISO®/IEC 14763-2, ANSI®/TIA 568 and ANSI®/TIA 569
  • Complies with EN 50174-2
