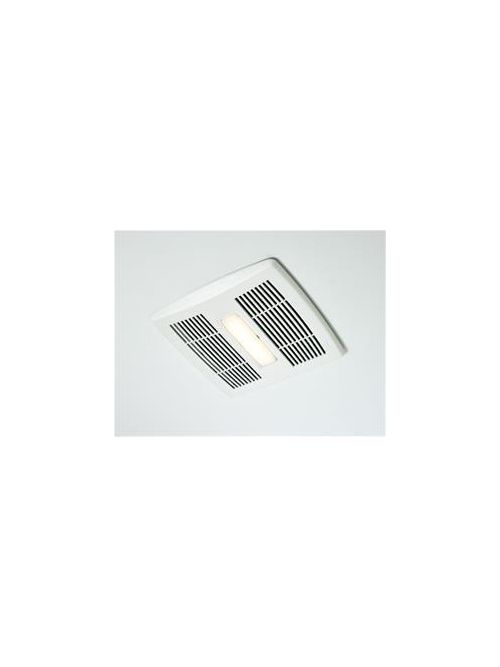

Product image for Broan AE110L 0.3 Amp 110 CFM 1.3 Sones 11-3/4 x 12-1/2 Inch Grille Ventilation Fan with Lamp
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

Broan AE110L 0.3 Amp 110 CFM 1.3 Sones 11-3/4 x 12-1/2 Inch Grille Ventilation Fan with Lamp

Manufacturer: Nutone | Catalog # AE110L | Echo Electric Part # 111203
$149.00/ea
ea
Log in or register to view your price, purchase history, and more!
9 available

For Pick Up

at Springfield, IL Opens Monday 7:00am CT
14 available

For Delivery

Not in local stock *
Check another branch
Product Spec Sheet Installation / Instruction Manual
Enjoy easy exhaust bath fan installation with the Broan® AE110L Flex Series White 110 CFM ceiling exhaust bath fan with Light ENERGY STAR®. Room side installation eliminates the need for Attic Access. This ceiling-mounted ventilation fan features foldable mounting ears and an EzDuct™ connector for a simple installation. New duct damper technology provides a tighter seal, resulting in reduced warm and cold air backdrafts. This energy efficient fan operates at 110 CFM and a quiet 1.0 sone. LED lighting lasts up to 25,000 hours.

Technical Information

Airflow Rate
110 CFM
Amperage
0.5 Amp
Bulb Included
Yes
Color Temperature
3500 K
Correlated Color Temp
3500 K
Duct Shape
Round
Duct Size
4 in
Light Type
LED
Lumens
800 Lumen
Mounting Type
Ceiling
Nightlight
No
Voltage
120 Volt
Wattage
23.4 Watt

Manufacturer Information

Brand
Broan-NuTone

General Product Info

12-Digit UPC
026715236664
Color
White
Housing Material
Galvanized
Product UPC
02671523666
Weight
8 lb

Dimensions

Grille Length
11-3/4 in
Grille Width
12-1/2 in
Height
5-3/4 Inch
Housing Height
5-3/4 in
Housing Width
10 in
Length
11-3/4 Inch
Warranty Length
3 yr
Width
12.5 in

Certifications and Compliance

Country of Origin
USA
Features
  • 110 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
  • 1.0 Sones for Ultra quiet performance, you might not notice it's on

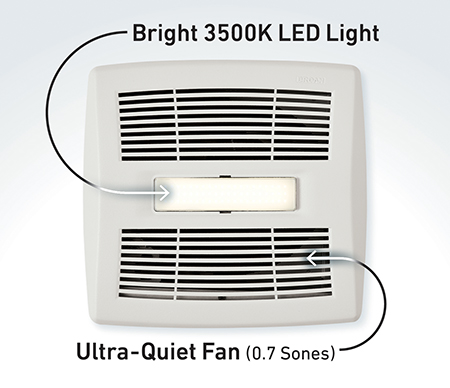

  • Bright 3500K energy efficient LED lighting to help illuminate your room
  • Retrofit installations can be done entirely from the room-side, no attic access required. This means a faster, easier installation
  • EzDuct™ connector can be installed from the room side, with no attic access required
  • TrueSeal™ Damper technology reduces air leakage up to 50%
  • Foldable mounting ears allow for easy installation in both new construction and room-side replacement applications
  • UL listed for use over tub or shower when connected to a GFCI-protected branch circuit (ceiling mount only)
  • Powerful enough for rooms up to 100 sq. ft.
  • Brighter white grilles blend in to match most common ceiling paint

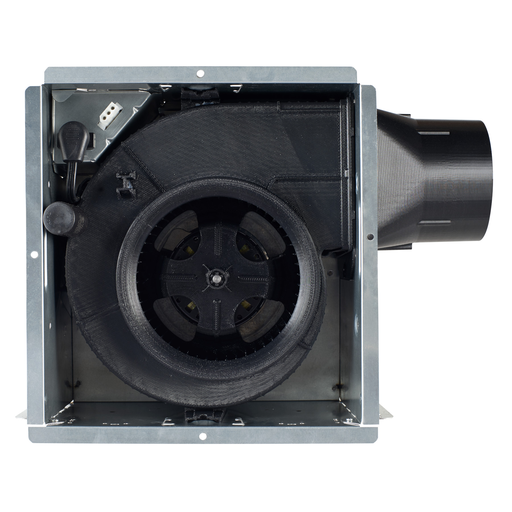

  • Corrosion resistant galvanized steel housing stands up to moisture
  • Permanently lubricated AC motor engineered for continuous operation
  • Quiet, energy efficient exhaust fan with LED light combo
  • Powerful enough for rooms (including bathroom) up to 105 sq. ft.
  • Easy to install new / replace existing product from the roomside
Includes
  • Integrated led module
  • Non-metallic damper/duct connector
