PHNX 3240210 SKS 8

Manufacturer: Phoenix Blocks | Catalog # 3240210 | Echo Electric Part # 111983
$16.80/ea
ea
Order in multiples of 10 (pack qty)
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days

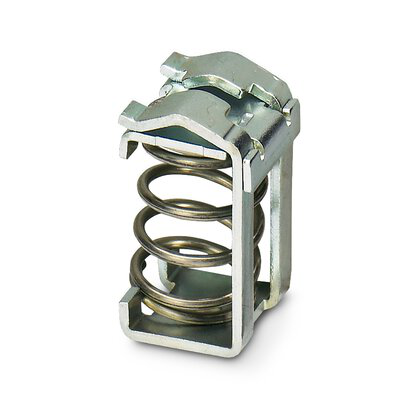

Shield connection terminal block, for applying the shield to busbars

Manufacturer Information

Brand
Phoenix Contact

General Product Info

12-Digit UPC
046356458655

Dimensions

Height
26 mm
Length
18 mm
Width
12.4 mm

Certifications and Compliance

Country of Origin
Germany
Features
  • The SKS ... spring shield connection clamps are available for cable and conductor diameters of 3 to 20 mm
  • According to the requirements of the directive and standards for electrical equipment in potentially explosive areas, as components, shield connections are not eligible for certification. As such, shield connection clamps can be used in the Ex area even without appropriate approval and marking.
  • Three different mounting types supported: on NS 35 DIN rails, on busbars or directly on conductive mounting plates
