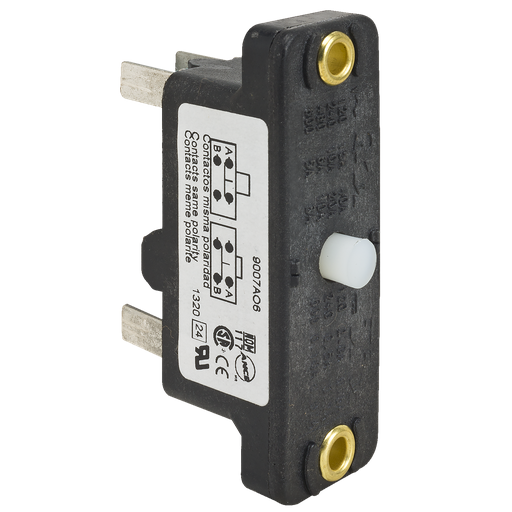

Product image for TES Sensors 9007AO6 Snap switch, 9007AO, plunger head, 15A at 120VAC, 1NO/1NC, open type
Email

TES Sensors 9007AO6 Snap switch, 9007AO, plunger head, 15A at 120VAC, 1NO/1NC, open type

Manufacturer: TESENSOR | Catalog # 9007AO6 | Echo Electric Part # 113496
$89.09/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page
Industrial snap switches are used as the electrical contacts within many control circuits and products. This snap switch has a thermoplastic plunger. This snap switch has two normally open snap action contacts. Contacts have an A600 inductive rating and 15A resistive rating. They also have 15A at 125VAC, 10A at 240VAC, 6A at 480VAC and 5A at 600VAC ratings. They also have 0.25A at 125VDC and 0.1A at 250VDC ratings. This snap switch is 2.50 inches tall, 0.83 inches wide and 1.03 inches deep. Snap switch is NEMA 1 and IP20 rated. Snap switch is UL component recognized and CSA certified. The 9007 AO Heavy Duty snap switches with a plastic body and a broad selection of operator styles and contact arrangements in 10A and 15A versions. The 9007 series limit switches are designed to withstand harsh industrial environments and are available in a wide range of options.

Technical Information

Action
LINEAR,SNAP ACTION
Actuator
CAST ZINC,PLUNGER HEAD,SPRING RETURN PLUNGER PLASTIC WITH THERMOPLASTIC END,VERTICAL APPROACH, 1 DIRECTION
Amperage
15 Amp,5 Amp 600 V AC, A600 NEMA RATING DESIGNATION-6 Amp 480 V AC, A600 NEMA RATING DESIGNATION-10 Amp 240 V AC, A600 NEMA RATING DESIGNATION-15 Amp 120 V AC, A600 NEMA RATING DESIGNATION-0.1 Amp 250 V DC-0.25 Amp 125 V DC
Body Material
Cast Zinc
Body Type
Plug-in NULL
Contact Configuration
FORM Z,NC-NO SPDT-DB
Contact Material
Silver
Enclosure
NEMA 1 NEMA TYPE 250
Material
Metal
Net Weight
0.1 lb
Number of Poles
1 Pole
Number of Steps
1
Operating Temperature
-20-185 Adegrees F
Size
0.83 IN,1.03 IN,2.5 IN
Storage Temperature
-20-185 degrees F
TC Connection
1-2 6 BINDER HEAD SCREW TERMINALS AWG 22...AWG 14)
Type
SNAP BASIC LIMIT SWITCH
Voltage
600 Volt

Manufacturer Information

Brand
Telemecanique
Sub Brand
9007AO/CO

General Product Info

12-Digit UPC
785901803317
GTiN
00785901803317
Product UPC
78590180331
Weight
0.1 lb

Dimensions

Depth
1.03 Inch
Height
2-1/2 Inch
Warranty Length
18 mth
Width
0.83 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
Mexico
