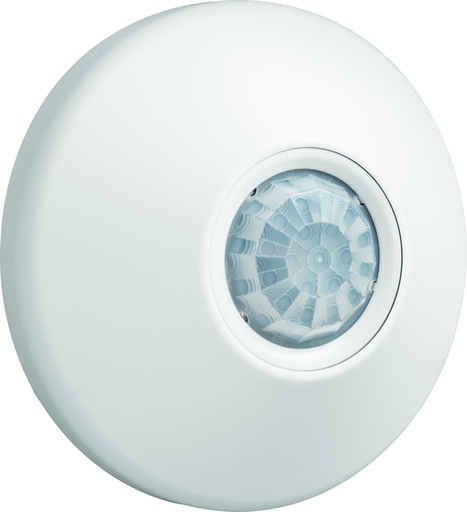

LIT CMR-6 Sensor

Manufacturer: Sensor Switch | Catalog # CMR6 | Echo Electric Part # 116335
$90.90/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet
Ceiling mount, line voltage, High Mount 360deg, SKU - 184CH1

Technical Information

Applications
Automotive & Parking,Education,Government,Healthcare,Hospitality,House Of Worship,Manufacturing,Offices & Banks,Power & Gas,Residential,Retail,Sports And Recreation,Transportation,Warehouses
Dimmable?
Yes
Lens Material
Plastic
Material
Plastic
Mounting Type
Flush,Surface
Sensing Range
360 degrees
Type
Sensor

Manufacturer Information

Brand
SensorSwitch

General Product Info

12-Digit UPC
745975808267
Color
White
Environmental Conditions
Indoor
Finish
Matte
GTiN
00745975808267
Product UPC
74597580826
Shape
Round
Weight
0.370 lb

Dimensions

Height
4-1/2 Inch
Length
4-1/2 Inch
Width
1.250 in
Applications
  • Automotive & Parking
  • Education
  • Government
  • Healthcare
  • Hospitality
  • House of Worship
  • Manufacturing
  • Offices & Banks
  • Power & Gas
  • Residential
  • Retail
  • Sports and Recreation
  • Transportation
  • Warehouses
Features
  • The CMR 10 Series incorporates Passive Infrared (PIR) technology into an attractive and economical line powered sensor to provide maximum viewing from the ceiling
  • When mounted at 9 ft (2
  • 74 m), this sensor views up to 28 ft (8
  • 53 m) in all directions
  • Its circular coverage pattern is designed for walking motions; making it ideal for T-shaped intersections in corridors, or other areas where wall mounting a sensor is not practical
  • Low ceiling heights are also best covered with the CMR 10
  • For example, when mounted at only 7 ft (2
  • 13 m), the height of pick aisles in many distribution centers, the CMR 10 provides a 32 ft (9
  • 75 m) diameter pattern of coverage
  • In applications where detection of minor motion is also required, the CMR PDT 10 Series Dual Technology sensor is recommended
Standards
  • C-UL-US
