PAN FZ2ERLNLNSNM003 Opti-Core® 2 Fi

Manufacturer: Panduit Corp | Catalog # FZ2ERLNLNSNM003 | Echo Electric Part # 116349
$69.53/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Buy American Compliant Buy American Compliant Product Spec Sheet Product Catalog Page

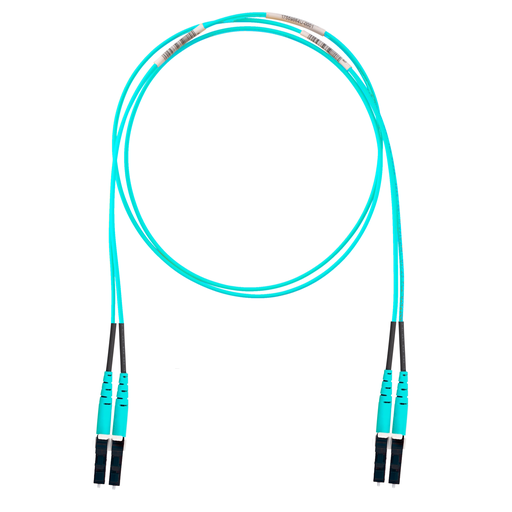

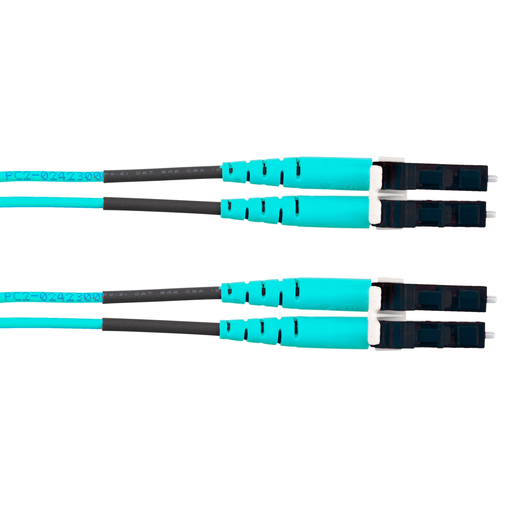

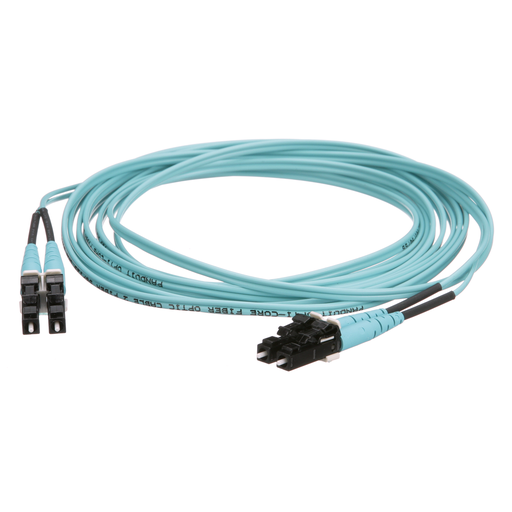

The duplex fiber patch cord is OM4 with 1.6mm jacketed cable. It is Riser (OFNR) rated, features LC Duplex connectors, has standard insertion loss, and is 3 meters long.

Technical Information

Applications
Provide Interconnect and Cross-Connect of Applications in Entrance Facilities, Telecommunications Rooms, Data Centers, at the Desk and Network Applications to Interconnect Pre-Terminated Cassettes in Main Distribution, Horizontal Distribution, and Equipment Distribution Areas
Body Type
Duplex
Boot Color
Aqua
Cable Type
Duplex
Connector Type
LC Duplex
Fiber Cable Size
50/125 m
Fiber Type
OM4
Max Operating Temperature
140 degrees F
Min Operating Temperature
-10 degrees C
Number of Fibers
2
Number of Poles
2 Pole
Number of Screws
2
Plug Type
LC Connector - Keyed H (Aqua)
Standard
CSA,NOM,UL
Temperature Rating
140 degrees F
Type
OM4 10 GbE, 2-Fiber
Wire Size
1.6 mm

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Opti-Core®

General Product Info

12-Digit UPC
074983922833
Cable Color
Aqua
Color
Aqua
Environment
Indoor
GTiN
00074983922833
Product UPC
07498392283

Dimensions

Cable Length
3 m
Length
9.84 Inch
Outer Diameter
0.62 in
Outside Diameter
NA
Overall Length
9.84 ft

Certifications and Compliance

Buy American Compliant
Y
CA Prop65 Warning
No
Country of Origin
China,Costa Rica,Mexico,Romania
Standards and Certifications
  • Standards Met: Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-3 (FOCIS-3), TIA-604-10 (FOCIS-10)
Prop 65
  • No
