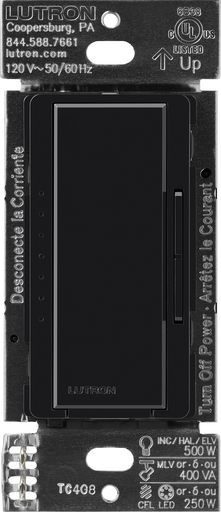

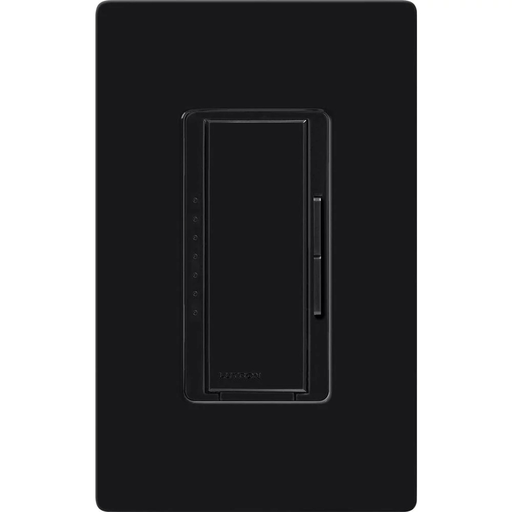

Lutron MA-PRO-BL MAESTRO PRO LED DIMME

Manufacturer: Lutron | Catalog # MA-PRO-BL | Echo Electric Part # 117121
$67.95/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet
Controls dimmable 150 W LED/CFL (screw-base) or 600 W incandescent/halogen loads. Provides true dimming from each location (with companion dimmers). Provides reliable dimming of dimmable LEDs/CFLs, as well as halogens and incandescents.

Technical Information

Actuator
Tapswitch
Applications
For Lighting Control
Connection Type
Screw Terminal
Enclosure Material
Plastic
Frequency
50 Hz
Insulation Material
Plastic
Material
Metal
Mounting Type
Wallbox
Number of Poles
1 Pole
Operating Temperature
0 - 40 degrees C
Power Rating
600 W
Size
75 in
TC Connection
Screw terminals
Type
Multi-Location, 3-Way, Tapswitch
Voltage
120 Volt
Wattage
600 Watt

Manufacturer Information

Brand
Lutron Electronics Company
Sub Brand
Maestro

General Product Info

12-Digit UPC
784276261531
Color
Black
Environmental Conditions
0 - 90% Non-Condensing Relative Humidity
Finish
Gloss
GTiN
00784276261531
Product UPC
78427626153

Certifications and Compliance

Country of Origin
Mexico
Features
  • Maximum Rating: 250W LED, 500W Incandescent / Halogen/ ELV, 400VA MLV, or 20 Hi-Lume 1% 2-Wire (LTE) LED Drivers
  • Neutral Optional for LED, CFL, and Incandescent/Halogen; Neutral Required for ELV, MLV, dimmable fluorescent ballasts, and Hi-Lume 1% LED drivers
  • Single pole or multi-location dimming from up to 9 locations with companion dimmer (MA-R-xx sold-separately)
  • Advanced Programming Mode allows users to customize the controls preset light level, high- and low-end trims, disable indicator lights, fade times, and phase select
  • Interchangeable color kits available for front panel (color change kit MK-D sold separately)
  • Phase Auto-Select: Chooses between either reverse or forward phase (When neutral is connected the automatic default is reverse phase; When neutral is not connected, the automatic default is forward phase)
  • Power failure memory; Should power be interrupted, the control will return to its previous state when power is restored
  • Screw Terminals for easy install; Can be installed on either load or line side of circuit
  • While load is on: Green indicator lights brighten and reflect light level; When load is off: Indicator lights remain in a soft glow state
  • Maestro PRO LED+ dimmers and wall plates are available in 10+ colors (wall plate sold separately)
  • Controls dimmable 150 W LED/CFL (screw-base) or 600 W incandescent/halogen loads
  • Provides true dimming from each location (with companion dimmers)
  • Provides reliable dimming of dimmable LEDs/CFLs, as well as halogens and incandescents.
Standards and Certifications
  • UL
  • CSA
  • NOM
