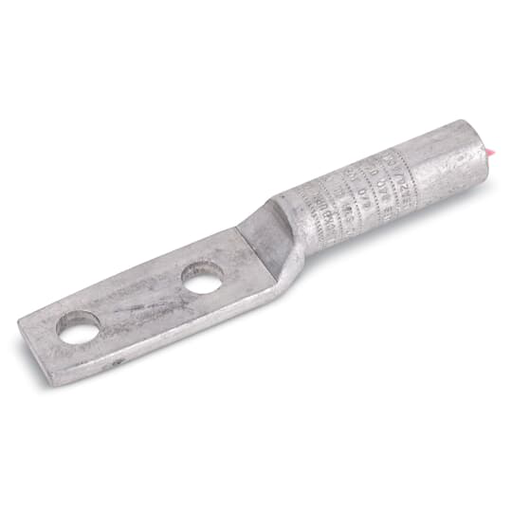

Blackburn AL24 Aluminum Compression Terminal

Manufacturer: Thomas & Betts Co | Catalog # AL24 | Echo Electric Part # 117478
$55.71/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Safety Data Sheet Product Catalog Page
Aluminum Two-Hole Lug - Straight Long Barrel, Wire Range 397 30/7, 26/7, 18/1, 477 18/1 ASCR, 450-500 Stranded, 600 kcmil, 1/2 Inch Bolt Size, Blind-End, Hydraulic Dies: 106H, CSA 28, B20AH, EEI 14A, 318, 1 5/16

Technical Information

Applications
For Aluminum and Copper Conductor
Barrel Type
Long
Cable Size
397 (30/7) ASCR kcmil ; 397(26/7) ASCR kcmil ; 397(18/1) ASCR kcmil ; 477 (18/1) ASCR kcmil ; 450 to 500 kcmil ; 600 kcmil
Conductor Size
397-30/7, 26/7, 18/1, 477-18/1 ACSR, 450-500 Stranded, 600 kcmil
Material
Aluminum
Mounting Type
NEMA Standard Mounting Holes
Number of Holes
2 Hole
TC Connection
Compression
Type
Long Sleeve

Manufacturer Information

Brand
ABB
Sub Brand
Blackburn®

General Product Info

12-Digit UPC
783786047321
GTiN
00783786047321
Product UPC
78378604732
Used With
Aluminum and Copper Conductors

Dimensions

Length
8-1/8 Inch
Overall Length
8-1/8 in
Width
1 5/16 in
Features
  • Complete die and crimp information clearly indented on each lug. Install with standard tools and dies.
  • Prefilled with oxide inhibitor.
  • Extended barrel for additional crimping area or weather-seal for outdoor terminators.
  • NEMA standard mounting holes. Use 1/2 inch mounting hardware for all sizes.
Notes
  • Hole Spacing 1 3/4 inches.
  • Available tin-plated (add suffix P to catalog number).
