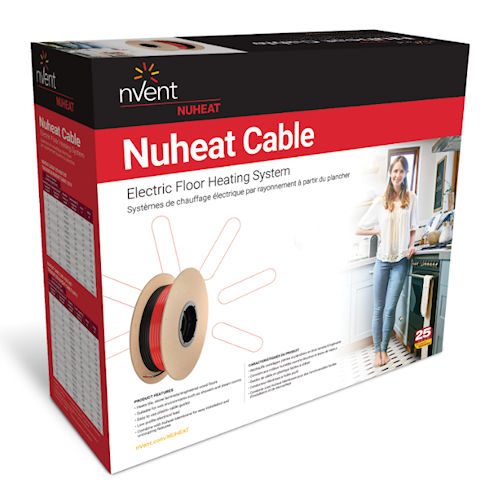

Product image for Nuheat N1C080 (FG0610) 120V 7.9A 947W Floor Heating Cable Kit, 318ft Length, Covers 80ft² @ 3" Spacing using Cable Guides
Image thumbnail 0
Image thumbnail 1
Email

Nuheat N1C080 (FG0610) 120V 7.9A 947W Floor Heating Cable Kit, 318ft Length, Covers 80ft² @ 3" Spacing using Cable Guides

Manufacturer: Raychem | Catalog # FG0610 | Echo Electric Part # 117994
$489.94/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet
Offering the ultimate in installation flexibility, Nuheat Cable allows for on-site adjustments to heating coverage, coupled with newly redesigned cable guides and a low-profile cold-lead, adding heated floors to your renovation or new construction project has never been easier.

Technical Information

Amperage
7.9 Amp
Applications
For use with 664 series floor boxes
Conductor Material
Copper
Conductor Size
2 Conductor 20-30 AWG
Insulation Material
ETFE
Max Power Current
971 W
Number of Conductors
2; Twisted Pair
Resistance
15 ohm
Temperature Rating
105 Deg C
Type
Floor Box
Voltage
120
Wattage
971

Manufacturer Information

Brand
nVent Nuheat
Sub Brand
RAYCHEM

General Product Info

12-Digit UPC
620713030103
Color
Red
Construction
TF Threaded #8-32
Finish
PVC Coated
GTiN
00620713030103
Jacket Material
PVC
Product UPC
62071303010
Weight
4.08 kg

Dimensions

Length
318 Foot
Outside Diameter
4 mm
Features
  • Easy installation, adjustable onsite to fit any area
  • Suitable for use under tile, stone, laminate and engineered wood floors
  • 12-15 W/ft² heat output
  • Compatible with nVent NUHEAT Membrane integrated heating and uncoupling system
  • Reliable during long life: 25 year product and total care warranty available, no maintenance required
