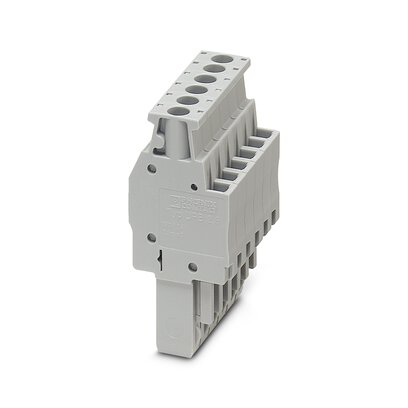

Product image for PHNX 3045444 UPBV 25/ 6
Image thumbnail 0
Image thumbnail 1
Email

PHNX 3045444 UPBV 25/ 6

Manufacturer: Phoenix Blocks | Catalog # 3045444 | Echo Electric Part # 118237
$9.30/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Plug, nom. voltage: 500 V, nominal current: 24 A, number of positions: 6, connection method: Screw connection, Rated cross section: 2.5 mm², cross section: 0.14 mm²- 4 mm², color: gray

Technical Information

Number of Positions
6
Strip Length
9 mm

Manufacturer Information

Brand
Phoenix Contact

General Product Info

12-Digit UPC
463560556590
Color
Gray
Product UPC
46356055659

Dimensions

Height
32.2 mm
Length
20.5 mm
Width
31.2 mm

Certifications and Compliance

Country of Origin
Turkey
Features
  • Can be bridged with FBS ... standard bridges
  • Large-surface labeling option
  • Practical coding option
  • The connected conductors can be led directly into the cable duct to save space
Approvals
  • EAC
  • cULus Recognized
  • UL Recognized
  • cUL Recognized
