SQD XVC6B35S Monolithic pre wired t

Manufacturer: Square-D / Schneider | Catalog # XVC6B35S | Echo Electric Part # 118555
$335.57/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3

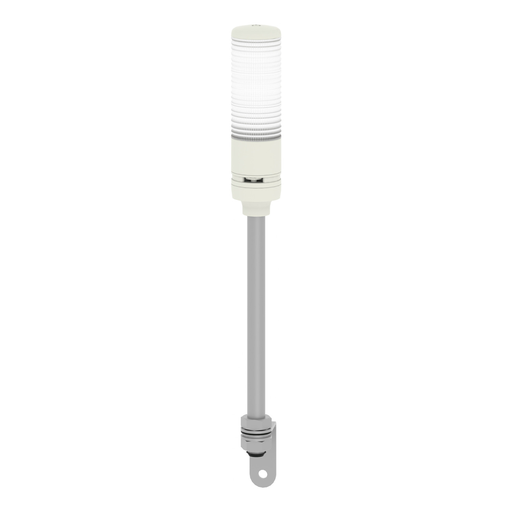

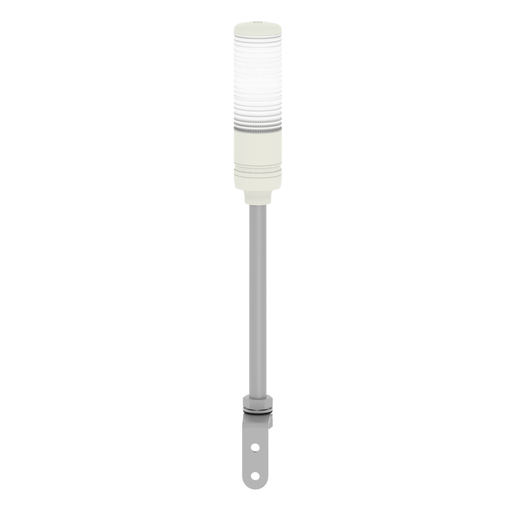

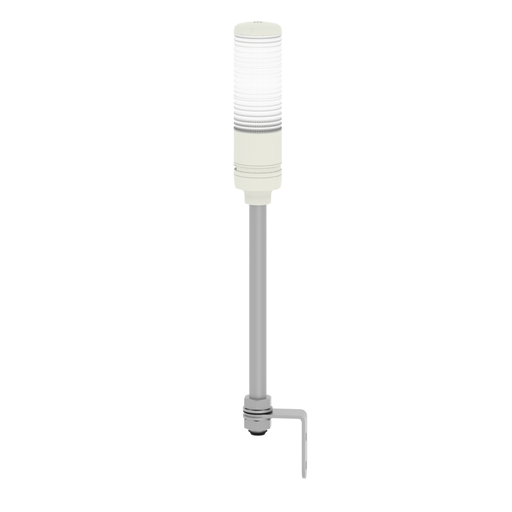

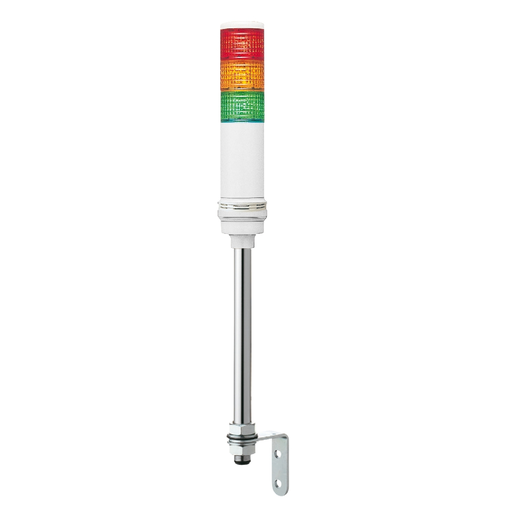

This Harmony XVC6B35S is a 60mm tower light. It has red, orange and green illuminated units flashing mode, with buzzer. It is part of the range Harmony XVC6 diameter 60mm pre-wired monolithic tower lights.

Technical Information

Amperage
115m Amp
Applications
BUZZER
Current
115 mA
Enclosure
IP23 VERTICAL SURFACE INSTALLATION EN/IEC 60529-IP54 FLAT SURFACE INSTALLATION EN/IEC 60529
Lens Color
LED STEADY OR FLASHING RED-LED STEADY OR FLASHING ORANGE-LED STEADY OR FLASHING GREEN
Lens Material
POLYCARBONATE ILLUMINATED UNIT-ABS (ACRYLONITRILE BUTADIENE-STYRENE) BASE UNIT-PBT + ABS (UL94HB) TOP COVER-STK (CHROMIUM-PLATED) SUPPORT TUBE
Light Source
LED Steady Or Flashing Green,LED Steady Or Flashing Orange,LED Steady Or Flashing Red
Material
ABS (acrylonitrile Butadiene-styrene): Base Unit,PBT + ABS (UL94HB): Top Cover,Polycarbonate: Illuminated Unit,STK (chromium-plated): Support Tube
Net Weight
0.98 kg
Operating Temperature
-10-50 degrees C
Size
60 MM
Standard
EN/IEC 61000-6-2,EN/IEC 61000-6-3,EN/IEC 61000-6-4
Storage Temperature
-35-70 degrees C
Type
3 ILLUMINATED UNITS,COMPLETE PRE-WIRED MONOLITHIC TOWER LIGHT
Voltage
24 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
XVC

General Product Info

12-Digit UPC
606480032663
GTiN
03606480032660
Product UPC
78590167084
Weight
0.98 kg

Dimensions

Cable Length
550 mm
Height
563.1 mm
Length
550 mm
Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL
Country of Origin
Indonesia
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • XVCZ12
  • XVCZ02
Cross Sell Products
  • XVC6B45S
  • XVC6B55S
