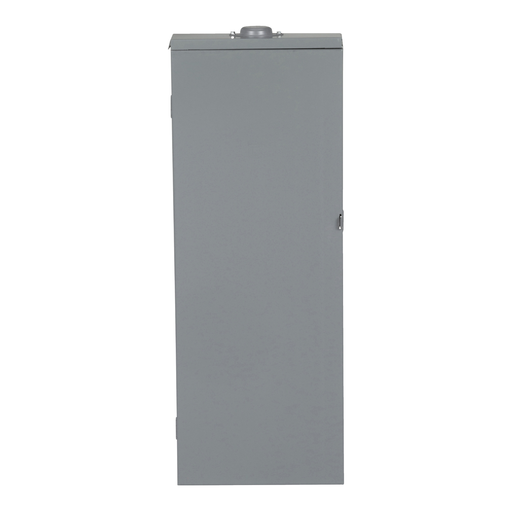

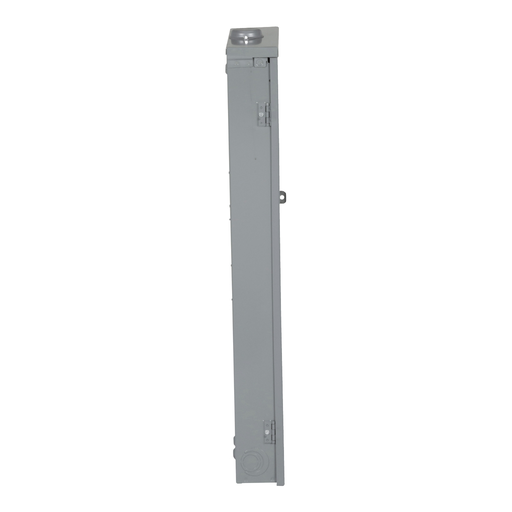

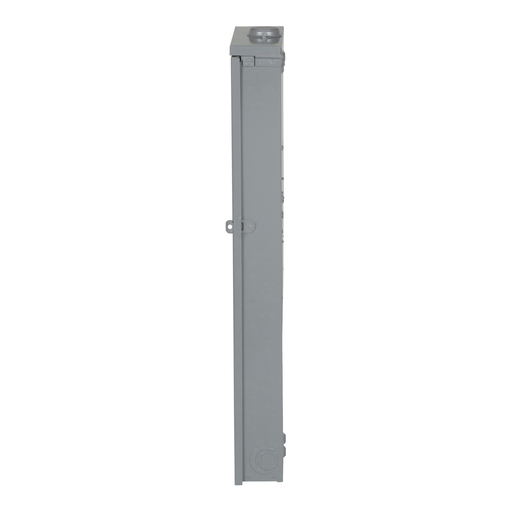

Product image for Square D QO330MQ150RB Load Center RB MB 150A 120/240V 3Ph 30SP NEMA-3R
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Square D QO330MQ150RB Load Center RB MB 150A 120/240V 3Ph 30SP NEMA-3R

Manufacturer: Square-D / Schneider | Catalog # QO330MQ150RB | Echo Electric Part # 118656
$2,498.33/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2
QO Load Centers offer premium features by allowing QO breakers, ground arc fault interrupters arc fault interrupters and surge arresters to be installed inside QO Load Centers enable the use of a full complement of accessories. Systems can be single or three phase and have indoor and outdoor versions. Indoor enclosures are designed to rotate 180 degrees to accommodate top or bottom service entrance feed which saves expensive service cable. QO Load Centers feature plated copper bus, providing superior performance and durability. This QO Load Center contains a convertible main and is rated at 150 A and 3 phase. This system provides 30 spaces in a NEMA 3R enclosure.

Technical Information

Amperage
150 Amp
Applications
DESIGNED TO MEET RESIDENTIAL, COMMERCIAL AND INDUSTRIAL REQUIREMENTS TO PROTECT ELECTRICAL SYSTEMS, EQUIPMENT AND PEOPLE.
Cable Size
AWG 4...300 KCMIL ALUMINIUM/COPPER
Conductor Size
4 AWG-300 kcmil
Cover Type
Surface Cover
Current
150 Amp
Enclosure
3R
Enclosure Material
Steel
Enclosure Rating
3R
Enclosure Type
Weatherproof enclosure
Interrupt Rating
25 kAIC
Line Rated Current
150 A
Material
Tin Plated Copper: Busbar
NEMA Size
3R
Number of Circuits
30
Number of Phases
3,4 Phase
Number of Spaces
30
Operating Temperature
23 degrees F (-5 degrees C) || 104 degrees F (40 degrees C)
Short Circuit Current
25 kA
Short Circuit Current Ratng
25 kA
Surface Finish
Baked Enamel Gray
Type
Load Center
Voltage
120 Volt

Manufacturer Information

Brand
Square D
Sub Brand
QO

General Product Info

12-Digit UPC
785901290605
Finish
Baked Enamel
GTiN
00785901290605
Product UPC
78590129060

Dimensions

Height
1000 mm
Warranty Length
18 mth
Width
375 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • PK18GTA
  • QO2175SB
  • QO250PSPD
  • HEPD25
  • HEPD50
  • HEPD80
  • HEPD25MKF
  • HEPD58MKF
