Hubbell HBL420W4-PLEX Receptacle, 20A 125V, 5-20R, WH

Manufacturer: Hubbell Wiring Device | Catalog # HBL420W | Echo Electric Part # 118722
$48.22/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, 4- Plex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5- 20R, White, Single Pack.

Technical Information

Amperage
20 Amp
Applications
For Industrial Use
Base Material
PBT
Conductor Size
14-12 AWG
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Polycarbonate
Horsepower
1 hp
Material
Thermoplastic
Mounting Type
Screw
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA 22.2,NEMA® WD-6,No. 42 File 285,UL Standard 498 File E2186
Style
Smooth Face
TC Connection
Terminal Screws
Type
Non-Reversing
Voltage
125 Volt
Wattage
2500 Watt
Wire Count
3
Wire Size
12 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
4-Plex®

General Product Info

12-Digit UPC
783585014548
Color
White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585014548
Product Series
4-Outlet Receptacle
Product UPC
78358501454
Weight
0.4 lb

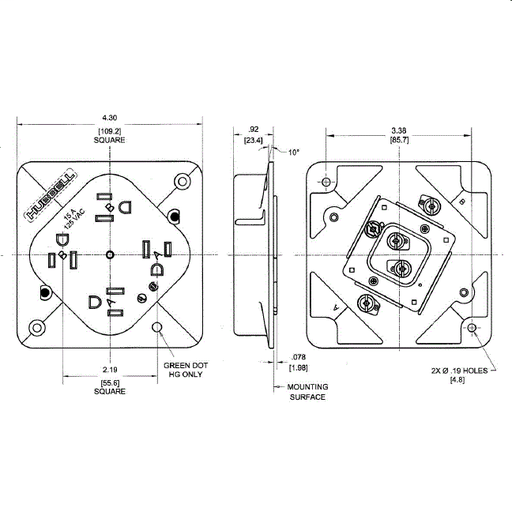

Dimensions

Height
4.3 Inch
Length
4.3 Inch
Width
0.92 in

Certifications and Compliance

Country of Origin
USA
Features
  • Anchor hole and loop feature secures solid wire for fast, easy terminations
  • Triple wipe contacts
  • Easily accessible break-off tabs for split wiring
  • Three conductors energize all four outlets
  • 4 Receptacles in one
