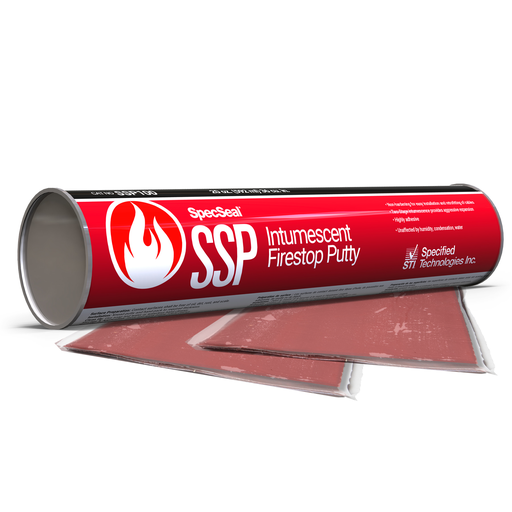

Specified Technologies Inc. (STI) SSP100 36 In³Tubing Putty

Manufacturer: Specified Technologies Inc | Catalog # SSP100 | Echo Electric Part # 120417
$64.00/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet
SpecSeal SSP Firestop Putty excels at sealing cabling penetrations and outlet boxes. SSP Putty is non-hardening and easily hand works around grouped cabling penetrations forming a re-enterable seal allowing for future work. When applied with outlet boxes, SSP Putty easily works into voids and seams forming a continuous seal against fire and the products of combustion.

Technical Information

Material
Intumescent
Type
Firestop Putty

Manufacturer Information

Brand
SpecSeal

General Product Info

12-Digit UPC
730573021002
Color
Red
Product UPC
73057302100
Weight
2.22 lb

Dimensions

Height
2.4 Inch
Length
12 Inch
Width
2.4 in

Certifications and Compliance

Country of Origin
USA
Features
  • The firestopping putty shall be a one-part, two-stage intumescent, non-hardening compound. The putty, when exposed to high heat or flame shall be capable of expanding a minimum of five times. Range of continuing expansion shall be from 230°F to less than 1,000°F (110°C to less than 538°C). The putty shall be soft and pliable with aggressive adhesion and shall not contain any water-soluble intumescent ingredients. The putty shall be UL Certified and/or FM Systems Approved and tested to the requirements of ASTM E814 (UL1479), CAN/ULC-S115 and UL263 (ASTM E119, NFPA 251). S
  • Remains pliable and workable for the lifetime of the installation for an easy retrofit., Two stage intumescent - aggressive expansion., Endothermic fillers absorb heat & release water., Sound deadening - excellent sound attenuation properties that reduces noise transmission.
  • Non-hardening = easy retrofit
  • Endothermic fillers absorb heat & release water
  • Highly adhesive formula - stays put, allows movement
  • Soft & pliable for easy installation
  • No water-soluble expansion ingredients means better water resistance
  • Excellent sound attenuation properties
  • Reduces noise transmission
Standards and Certifications
  • ASTM E814
  • UL 1479
  • CAN/ULC S115
  • UL263(ASTM E119
  • NFPA 251)
  • ASTM E814 (UL1479)
  • CAN/ULC-S115
  • UL263 (ASTM E119
  • FM Approved: Yes
  • UL Certified Firestop: Yes
  • FBC System Compatible: No
Applications
  • Cables
  • Electrical Box
  • Metal Pipes
Properties
  • Intumescent
  • Low VOC
  • No Expiration
  • Re-Enterable
  • Smoke Barrier
  • STC Rating
Construction Type
  • SpecSeal SSP Putty Pads are suitable for use in all common constructions for sealing cabling penetrations, and outlet boxes.
Industry
  • Residential
  • Commercial
  • Industrial
  • Construction
  • Government
Recommended Use

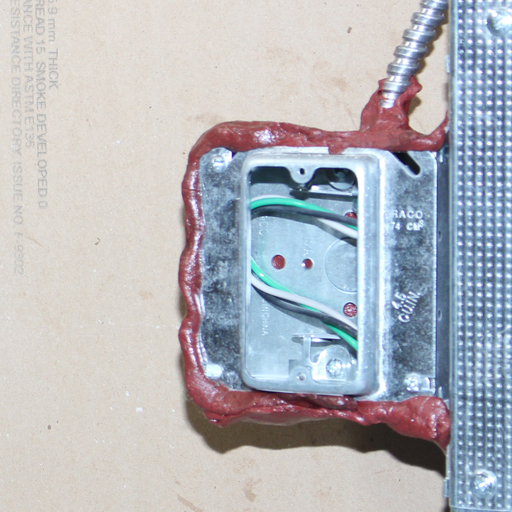

  • SpecSeal SSP Putty and Putty Pads are used to seal through-penetrations as well as construction gaps and blank openings. SpecSeal Putty Pads are used to seal around electrical boxes to reduce sound transmission (see Technical Update) and increase fire resistance. These pads also provide a metered method of application when sealing through penetrations and in some applications, are used to provide a cushion to allow movement due to settling, expansion and contraction, or vibration.
