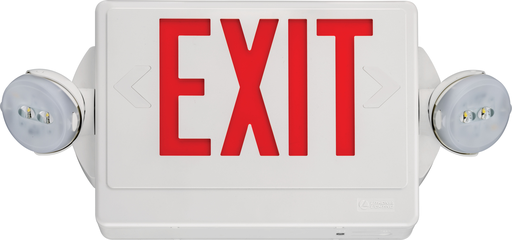

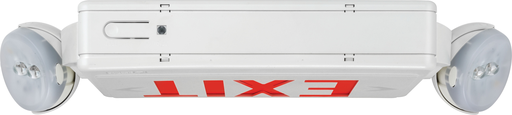

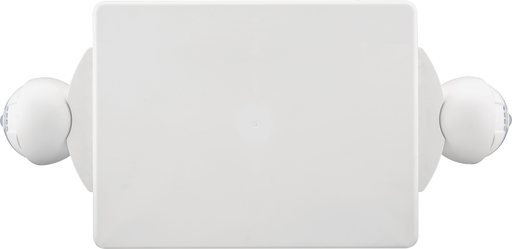

Product image for Lithonia LHQM-LED-R-HO-M6 Stencil Face LED Exit Sign, Single Face, 2-Lamp Heads, 120/277V, White Thermoplastic Housing, Red Lettering, High-Output Ni-Cad Battery
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

Lithonia LHQM-LED-R-HO-M6 Stencil Face LED Exit Sign, Single Face, 2-Lamp Heads, 120/277V, White Thermoplastic Housing, Red Lettering, High-Output Ni-Cad Battery

Manufacturer: Lithonia Lighting | Catalog # LHQMLEDRHOM6 | Echo Electric Part # 122103
$246.79/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Springfield, IL Opens Monday 7:00am CT
12 available

For Delivery

Not in local stock *
Check another branch
Product Spec Sheet Safety Data Sheet

Technical Information

Applications
Education,Government,Healthcare,Hospitality,House Of Worship,Manufacturing,Offices & Banks,Retail,Sports And Recreation
Color Rendering Index
75
Color Temperature
4600 K
Correlated Color Temp
4600 K
Lamp Type
LED
Lamp Wattage
Not Applicable
Lens Color
Clear
Lens Material
Plastic
Light Source
LED
Lumens
160 Lumen
Material
Thermoplastic
Mounting Type
Surface
Number of Lamps
0
Power Source
Hardwired
Type
Emergency Exit Sign
Voltage
120 Volt
Wattage
3 Watt

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
745976254322
Color
White
Construction
New Construction,Remodel
Environment
Indoor,Outdoor
Environmental Conditions
Indoor,Outdoor
Finish
Matte
Fixture Type
Emergency Exit Unit (aka Combo)
GTiN
00745976254322
Housing Color
White
Letter Color
Red
Product UPC
74597625432
Shape
Square
Weight
2.900 lb

Dimensions

Height
8 Inch
Length
19-1/4 Inch
Warranty Length
5 yr
Width
2.250 in

Certifications and Compliance

Certifications
NFPA 101,NOM,UL,UL Damp Location
Country of Origin
China,China
Features
  • APPLICATIONS: Suitable for commercial indoor applications requiring both exit sign and unit equipment. Idea for lower mounting heights and is great for above-the-door applications and other tight fits
  • INSTALLATION: Easily replaces existing emergency combination units and has top, back or end mounting capability (canopy included)
  • DIMMING: Not applicable
  • RATINGS: UL Listed, meets all applicable requirements for UL 924, NFPA 101 (current Life Safety Code), NFPA 70 (NEC) and OSHA, UL Damp Location 50 to 104 degrees F listed
  • VOLTAGE: Functions between 120 or 277 volts with input wattage of 4.3 watts
  • LIFE: The typical life of the LED lamp is 10 years using one 1.5 Watt LED per lamp head
  • DESIGN: Engineering-grade thermoplastic housing is impact-resistant, scratch-resistant and corrosionproof, UL94V-O flame rating, UV-stable resin resists discoloration from natural and man-made light sources
  • BATTERY: Emergency combo provided with test switch, status indicator and rechargeable battery with maintenance-free nickel-cadmium battery provides 90 minutes of emergency power
  • WARRANTY: Buy with confidence with a 5-year limited warranty
  • DIMENSIONS: Length: 19.25 in. x Height 8.0 in.
Applications
  • Education
  • Government
  • Healthcare
  • Hospitality
  • House of Worship
  • Manufacturing
  • Offices & Banks
  • Retail
  • Sports and Recreation
Standards
  • NFPA 101
  • NFPA 70
  • ULCA Title 20
