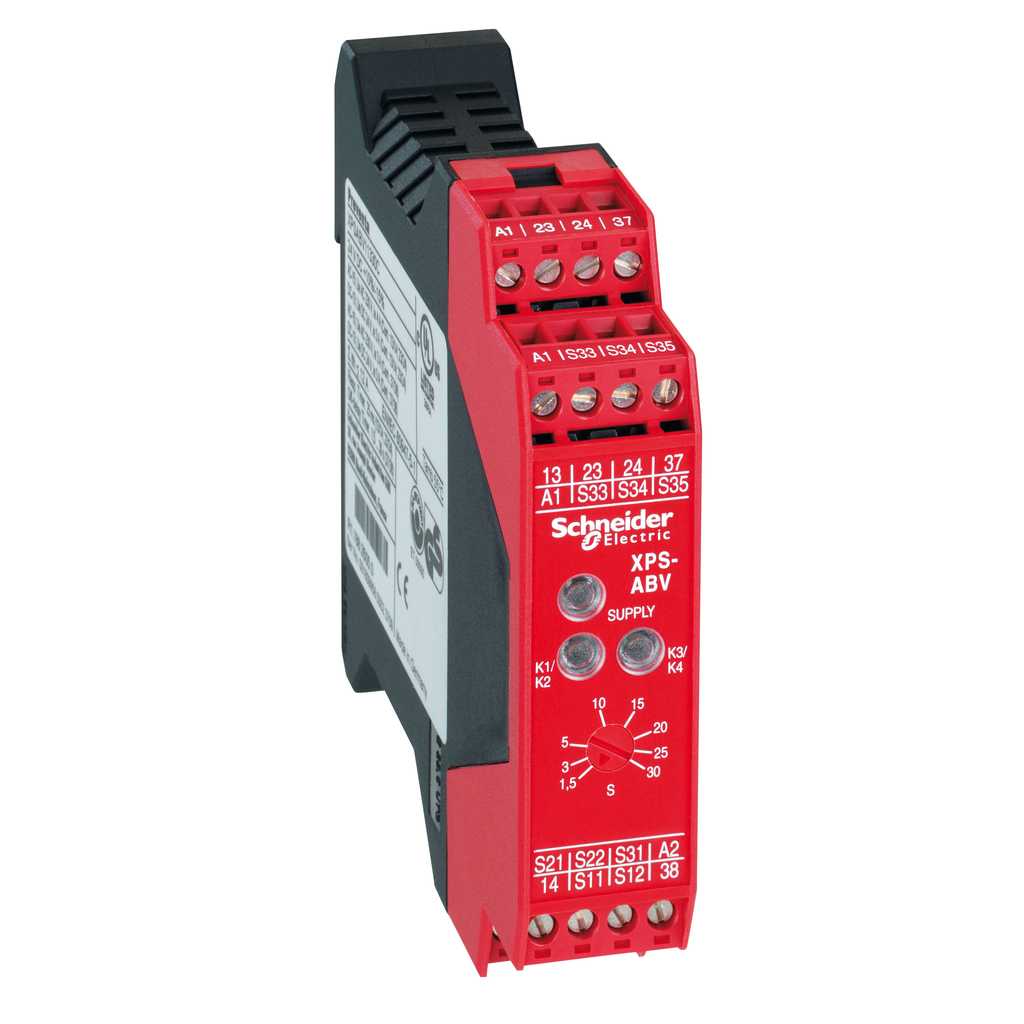

Product image for SQUARED XPSABV1133P module XPSABV -
Image thumbnail 0
Image thumbnail 1
Email

SQUARED XPSABV1133P module XPSABV -

Manufacturer: Square-D / Schneider | Catalog # XPSABV1133P | Echo Electric Part # 122450
$386.98/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This XPSABV safety module monitors emergency shutdown pushbuttons and limit switches. It meets the requirements of PL e/Category 4 (instantaneous safety outputs), PL d/Category 3 (time delayed safety outputs) conforming to EN/ISO 13849-1. It meets also the requirements of SILCL3 (instantaneous safety outputs) and SILCL2 (time delayed safety outputs) conforming to EN/IEC 61508 and EN/IEC 62061. It can be used for monitoring Emergency stop circuits conforming to EN/ISO 13850 and EN/IEC 60204-1 standards, and electrical monitoring of switches in protection devices conforming to EN/ISO 14119 standard. It has removable terminals for easier and better control wires tightening, thus improving installation reliability.

Technical Information

Applications
For emergency stop and switch monitoring
Contact Configuration
RELAY INSTANTANEOUS OPENING 2 NO, RELAY TIME DELAY OPENING 1 NO
Contact Rating
1.5 A 24 V DC-13)50 MS RELAY OUTPUT,3600 VA INRUSH AC-15 B300-360 VA HOLDING AC-15 B300
Enclosure
IP20 CONFORMING TO EN/IEC 60529, IP40 CONFORMING TO EN/IEC 60529
Net Weight
0.28 kg
Operating Temperature
-25-55 degrees C
Output
RELAY INSTANTANEOUS OPENING, 2 NO, VOLT-FREE-RELAY TIME DELAY OPENING, 1 NO, VOLT-FREE
Power Supply
24 V DC - 15...10
Standard
EN 1088/ISO 14119,EN/IEC 60204-1,EN/IEC 60947-5-1,EN/ISO 13850
Storage Temperature
-25-75 degrees C
TC Connection
CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 1 X 0.2...1 X 2.5 MMA SOLID WITHOUT CABLE END-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 1 X 0.2...1 X 2.5 MMA FLEXIBLE WITHOUT CABLE END-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 1 X 0.25...1 X 2.5 MMA FLEXIBLE WITH CABLE END, WITHOUT BEZEL-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 1 X 0.25...1 X 1.5 MMA FLEXIBLE WITH CABLE END, WITH BEZEL-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 2 X 0.2...2 X 1 MMA SOLID WITHOUT CABLE END-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 2 X 0.2...2 X 1 MMA FLEXIBLE WITHOUT CABLE END-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 2 X 0.25...2 X 1 MMA FLEXIBLE WITH CABLE END, WITHOUT BEZEL-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 2 X 0.5...2 X 1 MMA FLEXIBLE WITH CABLE END, WITH DOUBLE BEZEL
Type
Preventa safety module

Manufacturer Information

Brand
Telemecanique
Sub Brand
PREVENTA

General Product Info

12-Digit UPC
785901452430
GTiN
03389118376076
Product UPC
78590145243

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
BG,CSA,UL
