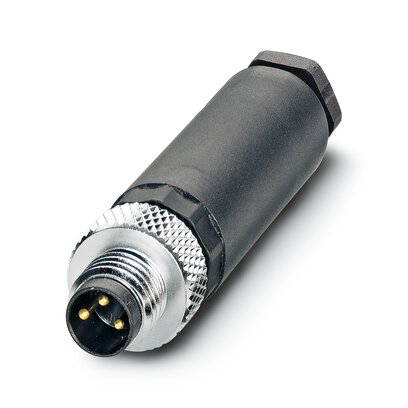

Phoenix Contact 1501252 SACC-M-8MS-3CON-M-SW M8 Connector, Straight Screw Connection, 3-Position Male

Manufacturer: Phoenix Blocks | Catalog # 1501252 | Echo Electric Part # 122849
$31.11/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Connector, Universal, 3-position, Plug straight M8, A-coded, Screw connection, knurl material: Nickel-plated brass, external cable diameter 3.5 mm ... 5 mm

Technical Information

Amperage
4 Amp
Cable Size
3.5 - 5 mm
Contact Material
Copper Zinc Alloy
Operating Cycles
>=100
Type
Plug, Straight, Universal
Voltage
48 VAC, 60 VDC

Manufacturer Information

Brand
Phoenix

General Product Info

12-Digit UPC
179186127952
Housing Material
Brass/Polybutylene Terephthalate
Product UPC
17918612795

Dimensions

Length
50 mm

Certifications and Compliance

Country of Origin
Germany
Features
  • Safe use in the field, thanks to a high degree of protection
  • Flexible: connectors for on-site assembly
  • Screw connection: proven connection technology for a large selection of different conductors
Approvals
  • cULus Listed
  • UL Listed
  • cUL Listed
