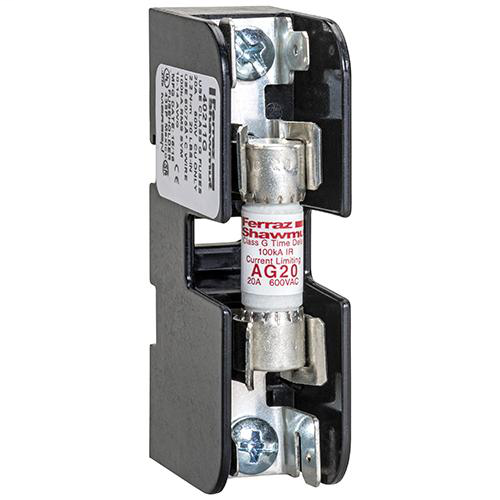

Product image for Mersen 40311G 67489-FB,CLASS G,30A-
Image thumbnail 0
Image thumbnail 1
Email

Mersen 40311G 67489-FB,CLASS G,30A-

Manufacturer: Ferraz Shawmut | Catalog # 40311G | Echo Electric Part # 123529
$29.97/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet
Mersen Class G fuse blocks accommodate all 15, 20, 30 and 60 ampere Class G fuses. A choice of box, screw or pressure-plate connectors fit a wide range of stranded or solid copper wire. Insulators are glassfilled polycarbonate (GFPC) with verified dielectric strength in excess of 2500V. Fuse blocks feature a unique adder block which can be snapped onto 1-, 2-, or 3-pole blocks to form multi-pole segmented blocks of as many poles as desired. All fuse clips are made of high conductivity tin-plated copper alloy.

Technical Information

Amperage
30 Amp
Frequency
50 Hz
Fuse Class
Class G
Fuse Interrupt Rating
30 A
Fuse Type
Class G
Insulation Material
GFPC
Max Operating Temperature
80 degrees C
Mounting Type
DIN Rail,Screw Mount
Number of Poles
1 Pole
Rated Voltage AC
480 V
Rated Voltage DC
480 V
TC Connection
Screw With Double Quick Connects
Torque
20 lb-in
Torque Rating
20 lb-in
Type
Open Style
Voltage
480 Volt

Packaging

Pkg Qty
10

Manufacturer Information

Brand
Ferraz Shawmut Canada, Inc.

General Product Info

12-Digit UPC
782001674892
Class
G
GTiN
00782001674892
Product UPC
78200167489
Weight
0.15 lb

Dimensions

Height
1.45 Inch
Length
3.05 Inch
Width
0.85 in

Certifications and Compliance

Country of Origin
Mexico
Features
  • Unique integral DIN-rail adapters for 15, 20 & 30A blocks
  • Unique adder-block design (all ampere ratings) for design flexibility
  • Spring reinforcing standard for 60A clips
  • Features high conductivity copper alloy fuse clips
Certifications
  • All fuse blocks meet the requirements of UL 4248
  • UL Listed guide IZLT, File E52283
  • CSA Certified class 6225, File 32169
