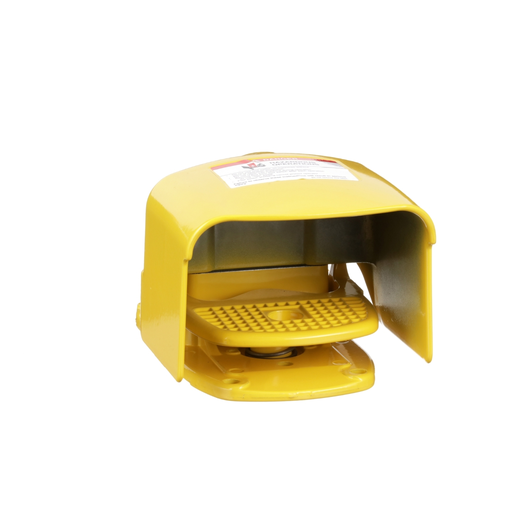

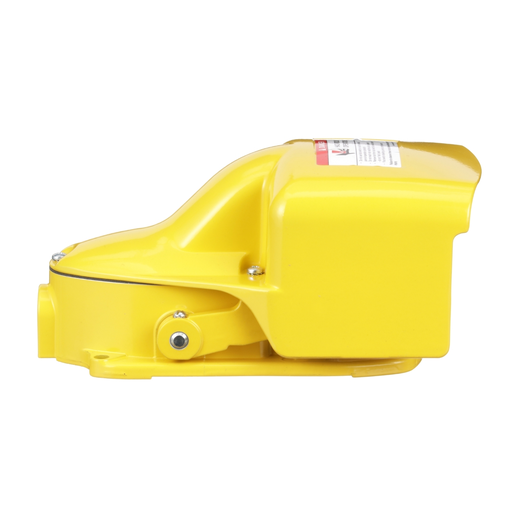

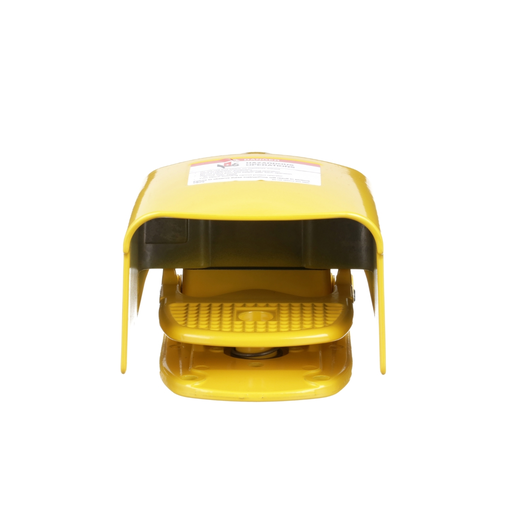

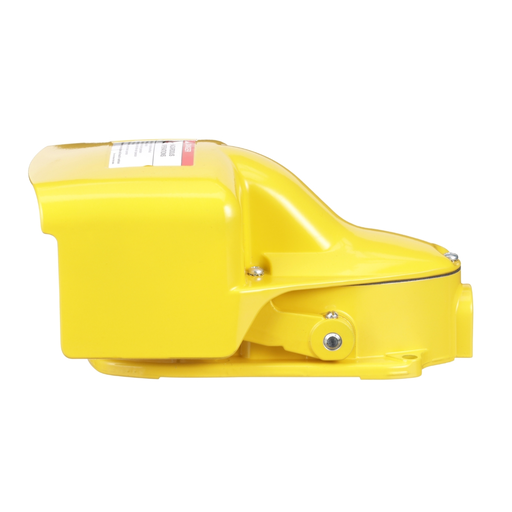

Product image for Square D 9002AW7 5 Amp 600 VAC SPDT Spring Return Shielded Heavy Duty Industrial Foot Switch
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Square D 9002AW7 5 Amp 600 VAC SPDT Spring Return Shielded Heavy Duty Industrial Foot Switch

Manufacturer: Square-D / Schneider | Catalog # 9002AW7 | Echo Electric Part # 124290
$568.28/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Springfield, IL Opens Monday 7:00am CT
2 available

For Delivery

Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
9002AW NEMA industial foot switches are heavy duty devices to used to control many industrial processes, while leaving the operator's hands free to perform other functions. The type or model of foot switch suitable for each application will vary depending on many factors. This foot switch has pedal and side shields. It has a mechanical latch. The single pole double throw snap switch used for the foot switch contact is rated at 5A resistive at 600 VAC. For other contact ratings, refer to the catalog. Snap switch contains two double break contact elements (1 N.O. and 1 N.C.) that must be used on circuits of same polarity. Foot switch has an enclosure rating of NEMA 2, 4 and 13. The cable entry for this foot switch has a 0.75 inch NPT conduit tread. Foot switch is UL listed and CSA certified.

Technical Information

Action
1 STEP,SPRING RETURN WITH LATCH
Actuator
SPRING RETURN WITH LATCH
Cable Entry
0.75 in
Contact Configuration
SPDT
Enclosure
13,2,4
Enclosure Rating
2, 4, 13
NEMA Size
13,2,4
Range
9002AW
TC Connection
0.75 INCH NPT (CONDUIT ENTRANCE)
Type
SPDT,FOOT SWITCH
Voltage
600 Volt

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901816614
Environmental Conditions
WATER TIGHT, DUST TIGHT AND OIL TIGHT (INDOOR/OUTDOOR)
GTiN
00785901816614
Product UPC
78590181661

Dimensions

Depth
229 mm
Height
123 mm
Warranty Length
18 mth
Width
137 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,UL Listed
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
