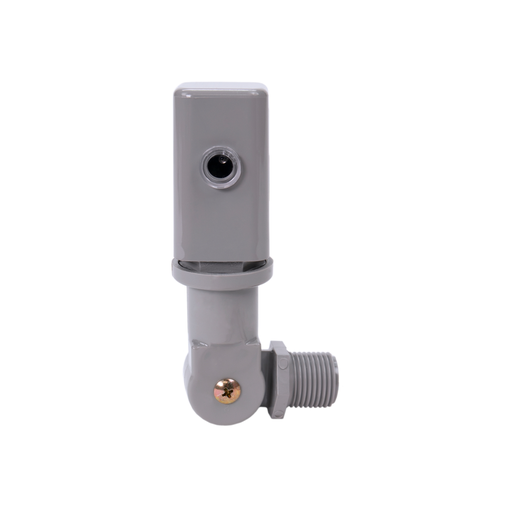

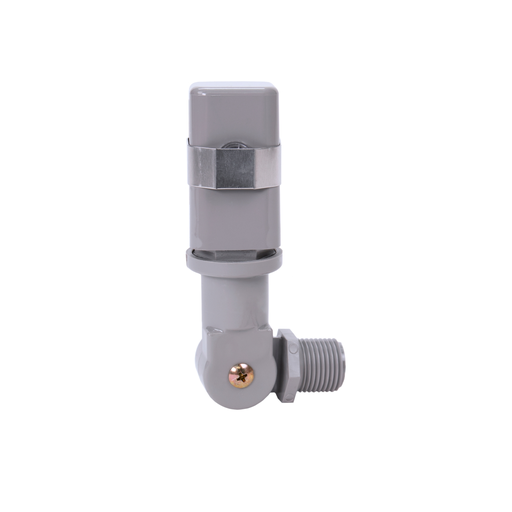

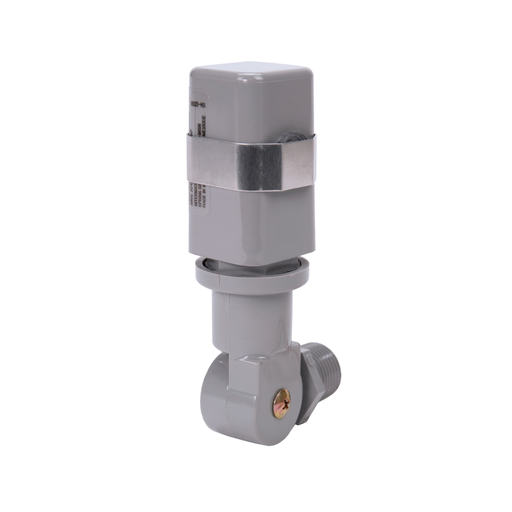

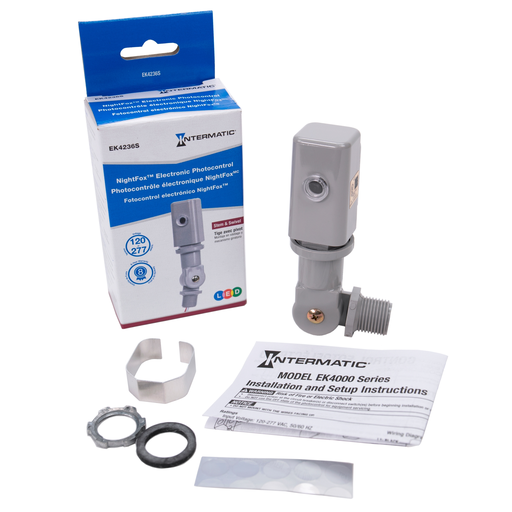

Product image for INT-MAT EK4235S NightFox™ Stem and
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

INT-MAT EK4235S NightFox™ Stem and

Manufacturer: Intermatic, Inc | Catalog # EK4235S | Echo Electric Part # 125212
$34.32/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Springfield, IL Opens Monday 7:00am CT
1 available

For Delivery

Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
NIGHTFOX electronic photocontrols permanently install on outdoor electrical boxes or outdoor lighting fixtures. Ideal for LED fixtures with long-life expectations. ½”-14 NPSM threaded stem fits standard outlet boxes and wall packs with a minimum installation hole size of 7/8” diameter. Come with 9" wire leads.

Technical Information

Applications
Outdoor Lighting Control
Enclosure
Polycarbonate
Max Operating Temperature
158 degrees C
Min Operating Temperature
-40 degrees C
Operating Cycles
10k
Operating Temperature
-40 to +158 DEG F -40 to +70 DEG C
Power Consumption
<0.5 WTT @ 277 VAC
Size
1.31 WIDTH x 1.25 DEPTH x 2.25 HIGH IN; 3.35 WIDTH x 3.18 DEPTH x 5.72 HEIGHT CM
TC Connection
Color Coded Lead
Type
Stem and Swivel Mount Electronic Photocell

Manufacturer Information

Brand
NA

General Product Info

12-Digit UPC
078275152410
GTiN
00078275152410
Product UPC
07827515241

Dimensions

Depth
1-1/4 Inch
Height
5-5/8 Inch
Warranty Length
8 yr
Width
1.313 in

Certifications and Compliance

CA Prop65 Warning
Nickel;DEHP
Country of Origin
Mexico
Features
  • Non-drift silicon light sensor with IR filter
  • DC relay with zero-crossing circuitry for extended life
  • Conformal coated PCB
  • 15-year design life
  • Exceeds 10,000 ON/OFF switching cycles
  • Fail ON mode
  • Ideal for single or multifixture HID and LED installations
  • 220 J MOV surge protection element
  • 1?2\"-14 NPSM threaded stem fits standard outlet boxes and wall packs for a minimum installation hole size of 7/8 inch diameter
  • #18 AWG wire leads
