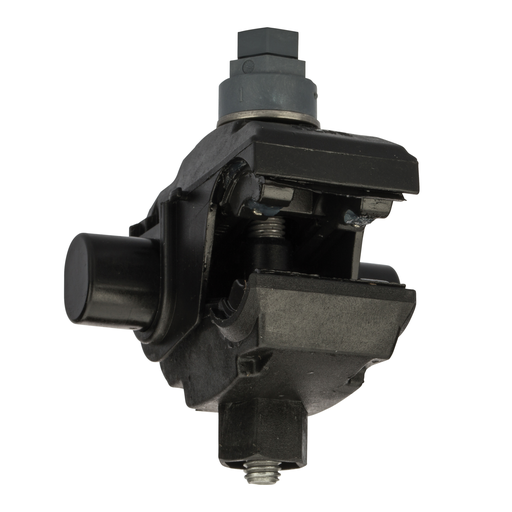

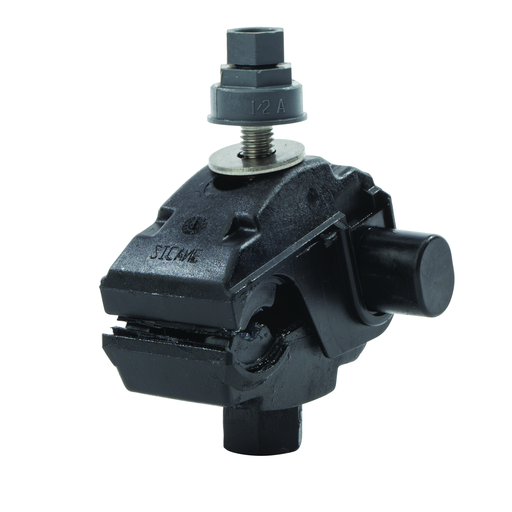

Product image for NSI IPCS7501 3/0 AWG to 750 MCM Main 14 to 10 AWG Tap Black Thermal Plastic Insulation Piercing Connector
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

NSI IPCS7501 3/0 AWG to 750 MCM Main 14 to 10 AWG Tap Black Thermal Plastic Insulation Piercing Connector

Manufacturer: NSi | Catalog # IPCS7501 | Echo Electric Part # 125321
$110.94/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet
Insulation Piercing Connector 750 MCM - 3/0 AWG Insulation piercing connectors are made for use with copper-copper, copper to aluminum and aluminum to aluminum applications. They are safe to use and are completely insulated, no need to strip wire. They can be installed on energized conductors with no contact at any point. No spacer required between connections. Exclusive "turbo spacer" keeps tap side open while main conductor is being tightened. Watertight and corrosion-free.

Technical Information

Amperage
40-55 Amp
Applications
Splice, Tap Power Connectors
Conductor Size
3/0 AWG
Material
Plastic
Max Temperature
90 degrees C
Mounting Type
Clamp
Size
L=2.60 - W=2.40 - H=3.70
Standard
UL486B Listed
Tap Size
10-14 AWG
Temperature Rating
90 degrees C
Type
Insulation Piercing Connectors
Voltage
600 Volt
Wire Size
000 AWG-750 kcmil

Manufacturer Information

Brand
NSI Industries
Sub Brand
Easy-Tap

General Product Info

12-Digit UPC
662381082619
Color
Black
Environmental Conditions
90 degrees C
Finish
Thermal Plastic
GTiN
00662381082619
Product UPC
66238108261

Dimensions

Height
3.7 Inch
Length
2.6 Inch
Warranty Length
1 yr
Width
2.4 in

Certifications and Compliance

Country of Origin
France
Certifications and Standards
  • ANSI
  • UL Listed
  • UL 486B
Features
  • Safe to use, versatile and reliable
  • No need to strip wire and totally insulated
  • No tape or cover needed
  • No contact at any point with a live part
  • Exclusive \"turbo spacer\" keeps tap side open while main conductor is being tightened.
