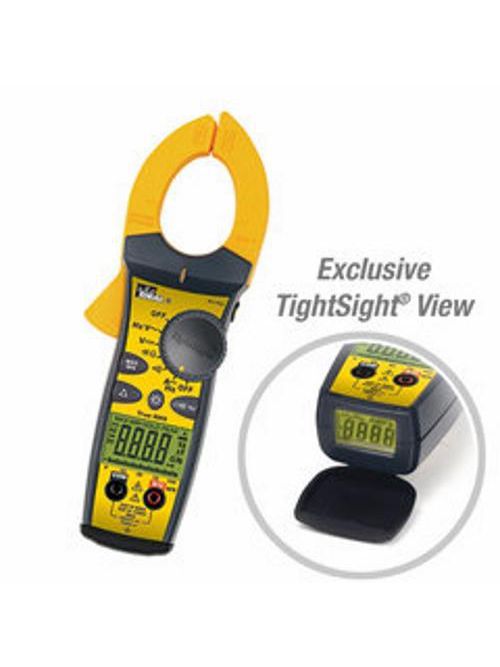

Ideal 61-763 660A AC TightSight Clamp Meter w/True-RMS, Capacitance & Frequency

Manufacturer: Ideal Industries | Catalog # 61-763 | Echo Electric Part # 125688
$392.80/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Buy American Compliant Buy American Compliant Product Spec Sheet
Problem: Have you ever had to measure the circuit current in a confined, dimly lit and hard to reach location?Solution: IDEAL TightSight™ Clamp Meter! This meter allows the user to safely and easily view current measurement with the exclusive second TightSight® display.

Technical Information

Accuracy
Stated Accuracy At 23 DEG C Plus Or Minus 5 DEG C, Less Than 75 PCT R.H
Applications
For A Variety Of Industrial And Commercial Environments
Jaw Capacity
36 mm
Resistance
0 To 999.9 OHM , 1000 To 9999 OHM At 1.5PCT + 5 Accuracy
Temperature Rating
32 to 122 F
Type
AC, Manual Selection
Voltage
750//999 VAC//VDC

Manufacturer Information

Brand
Ideal Industries
Sub Brand
TightSight

General Product Info

12-Digit UPC
783250724017
GTiN
00783250724017
Product UPC
78325072401

Certifications and Compliance

Buy American Compliant
Y
CA Prop65 Warning
WARNING: Cancer and Reproductive Harm -  www.P65Warnings.ca.gov.
Features
  • TightSight™ bottom display
  • Tapered jaws with hook tip
  • True RMS current and voltage
  • AC/DC voltage
  • Audible continuity
  • High frequency rejection*
  • Peak hold
  • Max/min hold
  • Data hold
  • Selectable audible and visual alerts when potentially hazardous voltages are detected at the probe terminals
  • Selectable auto power off
  • Backlit display
  • Low battery indicator
  • Reads accurately on noisy electrical circuits

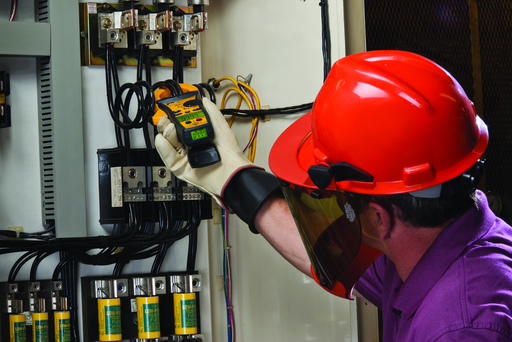

  • Patented TightSight™ display lets you easily take readings while keeping your head at a safe distance from the panel no more need to twist the meter or risk pulling on an energized conductor
  • Easy to read backlit display with large numbers and icons so you can always see the correct reading
  • Electronic overload protection on all ranges
  • Test leads supplied are compliant to IEC61010-031 compliant
  • Read and record while clamped instead of holding the reading, unclamping, moving and recording
  • Hook tip for easier wire separation and tapered jaws for reaching into tight spaces
  • Help troubleshoot with min and max value readings over a period, i.e. nuisance tripping and power supply fluctuations
  • True RMS provides accurate readings of non-sinusoidal load currents
  • Broad current range from 0 to 1000 amps (61-770 series) covers multiple applications
  • Large jaw diameter for cables up to 2\" (51mm) in diameter (770 series only)
  • Includes carrying case and test leads with alligator clips
  • Full AC/DC capabilities: the Tightsight™ is equally adaptable for both AC and DC current measurement requirements such as solar, public transportation, and battery backup applications
  • Calibration services available
  • 2-year warranty
