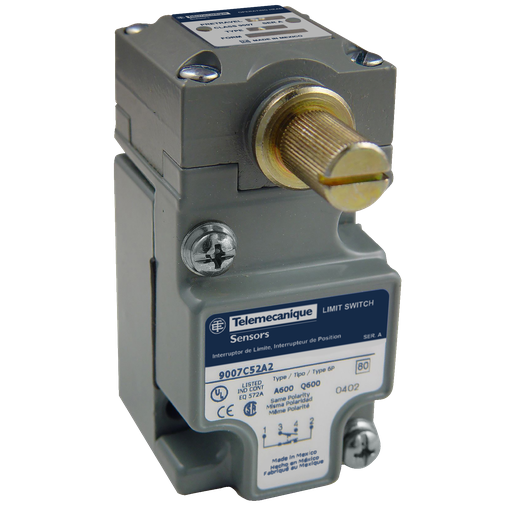

Product image for TES Sensors 9007C52C Limit switch, 9007, 600 V 10amp c +options
Email

TES Sensors 9007C52C Limit switch, 9007, 600 V 10amp c +options

Manufacturer: TESENSOR | Catalog # 9007C52C | Echo Electric Part # 127710
$419.50/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
Limit switch, 9007, 600 V 10amp c +options

Technical Information

Action
Snap action;CW and CCW;From left and right
Actuator
ZINC STAY PUT WITHOUT OPERATING LEVER -)9007C LEVER
Amperage
10 Amp
Applications
Compact box
Body Material
Zinc
Body Type
Plug-in NULL
Contact Configuration
NC-NO
Contact Material
Silver
Contact Rating
NEMA A600/Q600
Enclosure
NEMA 1 NEMA TYPE 250-NEMA 2 NEMA TYPE 250-NEMA 4 NEMA TYPE 250-NEMA 6 NEMA TYPE 250-NEMA 6P NEMA TYPE 250-NEMA 12 NEMA TYPE 250-NEMA 13 NEMA TYPE 250
Head Type
Rotary head NULL
Material
Metal
Net Weight
1.25 lb
Number of Poles
1 Pole
Operating Cycles
1M
Operating Temperature
-20-185 Adegrees F STANDARD ENVIRONMENT
Size
2.5 in
Storage Temperature
-20-185 degrees F
TC Connection
SCREW-CLAMP TERMINALS AWG 22...AWG 12), 1-2
Type
Limit switch
Voltage
1.2 A 600 Volt AC, A600 NEMA-1.5 A 480 Volt AC, A600 NEMA-3 A 240 Volt AC, A600 NEMA-6 A 120 Volt AC, A600 NEMA-0.1 A 600 Volt DC, Q600 NEMA-0.27 A 250 Volt AC, Q600 NEMA-0.55 A 125 Volt DC, Q600 NEMA

Manufacturer Information

Brand
Telemecanique
Sub Brand
9007C

General Product Info

12-Digit UPC
785901783855
Environmental Conditions
STANDARD ENVIRONMENT
GTiN
00785901783855
Product UPC
78590178385
Weight
1.25 lb

Dimensions

Depth
2-1/2 Inch
Height
3.14-3.14 Inch
Warranty Length
18 mth
Width
1.55 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
Mexico
