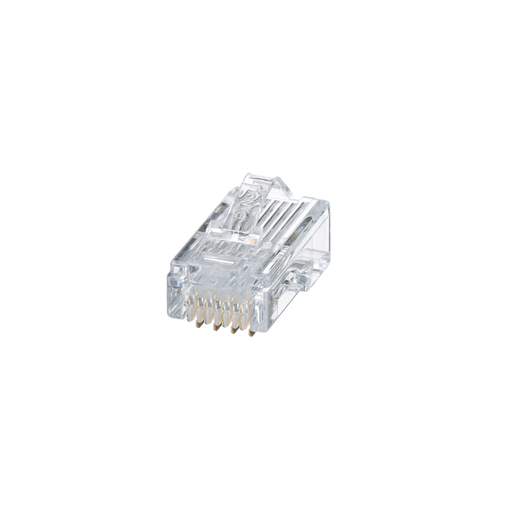

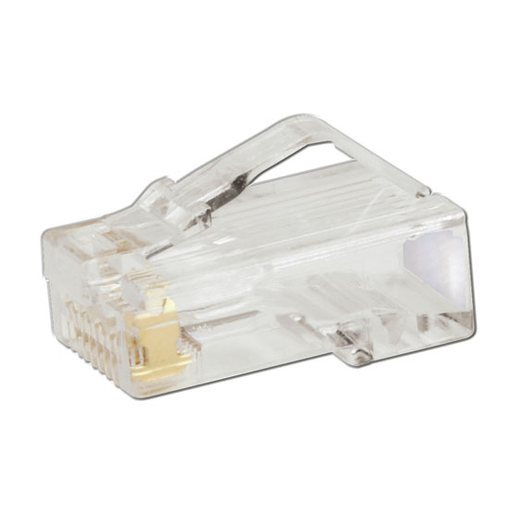

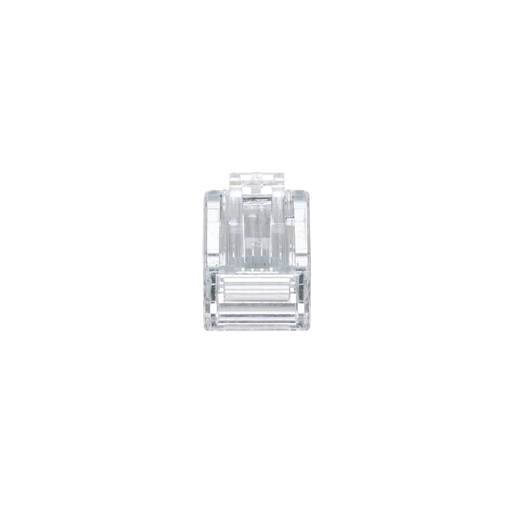

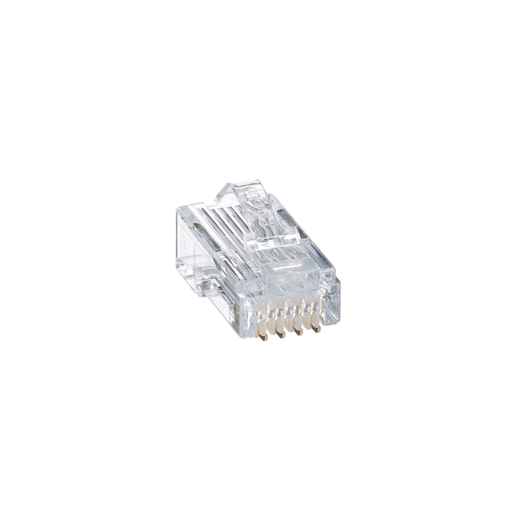

Product image for Panduit MP588-L RJ45 Cat 5e UTP Modular Plug, 24-26 AWG
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Panduit MP588-L RJ45 Cat 5e UTP Modular Plug, 24-26 AWG

Manufacturer: Panduit Corp | Catalog # MP588L | Echo Electric Part # 127800
$2.43/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Buy American Compliant Buy American Compliant Product Spec Sheet Product Catalog Page Installation / Instruction Manual
The Cat 5e modular plug terminates 4-pair, 24-26 AWG, 100 ohm, solid or stranded, unshielded twisted pair cable with maximum conductor insulation diameter of 0.040 inches (1.02mm). The modular plug has a robust construction that is rated to 2500 mating cycles. The patented tangle-free latch prevents snags and provides easy release. Simplified termination method shall require no load bar. Guide ramp shall facilitate easy conductor insertion and termination. This includes 1,000 per package.

Technical Information

Applications
NA
Cable Entry
T568A/T568B
Cable Size
24 AWG
Cable Type
Category 5e
IP Rating
IP20
Material
Polycarbonate
Max Operating Temperature
140 degrees F
Min Operating Temperature
-10 degrees C
Performance Level
Category 5e
Type
Modular Plug

Packaging

Pkg Qty
50

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Plug®

General Product Info

12-Digit UPC
074983709670
Color
Colorless
Environmental Conditions
Indoor
GTiN
00074983709670
Product UPC
07498370967
UNSPSC
43223301

Dimensions

Depth
0.88 Inch
Height
0.32 Inch
Width
0.46 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Costa Rica
Standards and Certifications
  • Standards Met: Meet all applicable ANSI/TIA-968-A requirements and exceeds IEC 60603-7 specifications, Meet requirements of IEEE 802.3af and IEEE 802.3at for PoE applications, RoHS compliant
