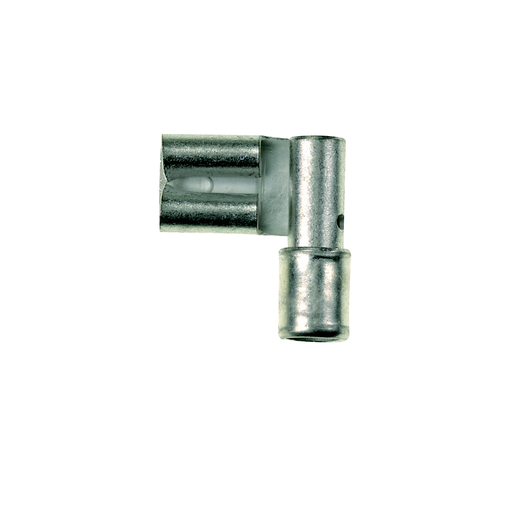

Product image for Panduit DR14-250-C Non-Insulated Right Angle Female Disconnect
Email

Panduit DR14-250-C Non-Insulated Right Angle Female Disconnect

Manufacturer: Panduit Corp | Catalog # DR14250C | Echo Electric Part # 128496
$149.37/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Buy American Compliant Buy American Compliant Product Spec Sheet Product Catalog Page
The vibration resistant female disconnect is made of brass and is tin-plated. It is non-insulated in metallic housing. It has a tab size of 0.25 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm²). It is 0.57" (14.5 mm) long and 0.3" (7.6 mm) wide. The disconnect has a standard barrel configuration and a sleeved barrel. It comes in bottles of 100.

Technical Information

Barrel Type
Sleeved Barrel
Color Coding
Metallic
Conductor Size
14 AWG
Material
Brass
Max Operating Temperature
150 degrees C
TC Connection
Standard
Temperature Rating
302 F
Type
Disconnect
Voltage
600 Volt
Wire Size
16-14 AWG

Packaging

Pkg Qty
100

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983827411
Finish
Tinned
GTiN
00074983827411
Product Type
Terminals
Product UPC
07498382741
UNSPSC
39121409

Dimensions

Depth
0.55 Inch
Height
0.61 Inch
Length
0.57 Inch
Overall Length
0.57 in
Width
.3 in

Certifications and Compliance

ARRA Compliant
Yes
Buy American Compliant
Y
CE Compliant
No,No
Country of Origin
Mexico
