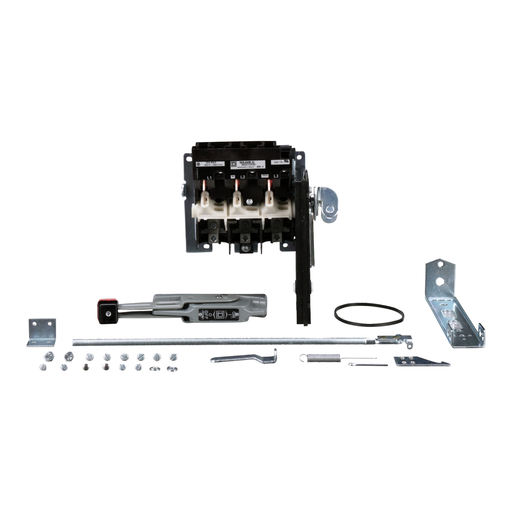

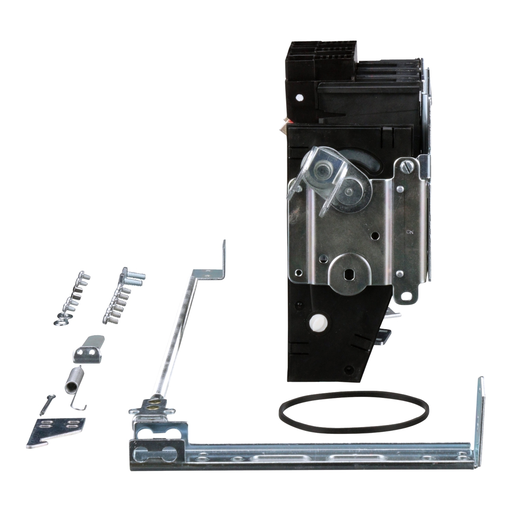

Product image for Square D 9422ATCN301 30 Amp 600 VAC A1 Mechanism Handle Non-Fusible Switch
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Square D 9422ATCN301 30 Amp 600 VAC A1 Mechanism Handle Non-Fusible Switch

Manufacturer: Square-D / Schneider | Catalog # 9422ATCN301 | Echo Electric Part # 128622
$639.29/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page
9422ATCF disconnect switches are designed for control panel installations. This disconnect switch is fully compatible with 9422A handle operators and 9423 door closing mechanisms. This disconnect switch is without fuse clips. This 30 A disconnect switch is designed for flange mounting. The variable depth mounting range is 6.63 to 18.00 inches. Disconnect switch has horsepower ratings of 7.5 HP at 208 VAC, 7.5 HP at 240 VAC, 15 HP at 480 VAC and 20 HP at 600 VAC. Switch is also rated for 5 HP at 250 VDC and 15 HP at 600 VDC when using two poles. 9422A1 operating handle is overpacked with this disconnect switch. Disconnect switch lugs are rated for #14 to #2 AWG with copper wire and #14 to #2 with aluminum wire. Operating mechanism is UL Component Recognized and CSA certified Disconnect switch is UL Component Recognized and CSA certified

Technical Information

Actuator
6 HANDLE INCLUDED (9422A1)
Amperage
30 Amp
Applications
ROD OPERATED - VARIABLE DEPTH/FLANGE MOUNT
Current
30 Amp
Enclosure
NEMA 1/3/3R/4/12
Handle Type
6 in handle included NEMA 1/3/3R/4 enclosures sheet steel
Indicator
OFF/ON
Line Rated Current
30 A
Mounting Type
Flange Rod Variable Depth
Number of Poles
3 Pole
TC Connection
FLANGE MOUNT
Trip Type
NON FUSIBLE NON FUSIBLE
Type
Non-fusible disconnect switch;Disconnect Switch

Manufacturer Information

Brand
Square D
Sub Brand
SCHNEIDER ELECTRIC

General Product Info

12-Digit UPC
785901872146
GTiN
00785901872146
Product UPC
78590187214

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,UL Recognized
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Spare Part Products
  • 9422TCN30
  • 9422A1
