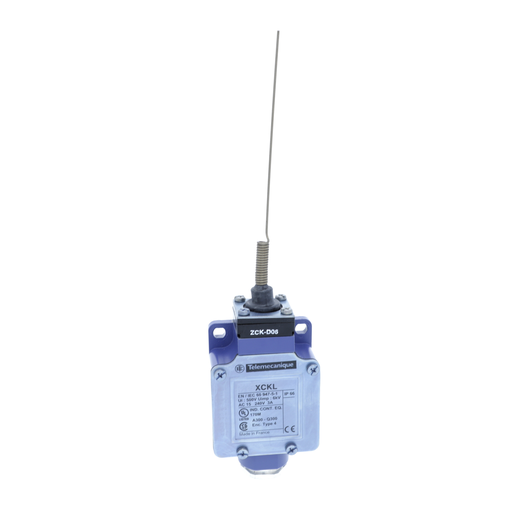

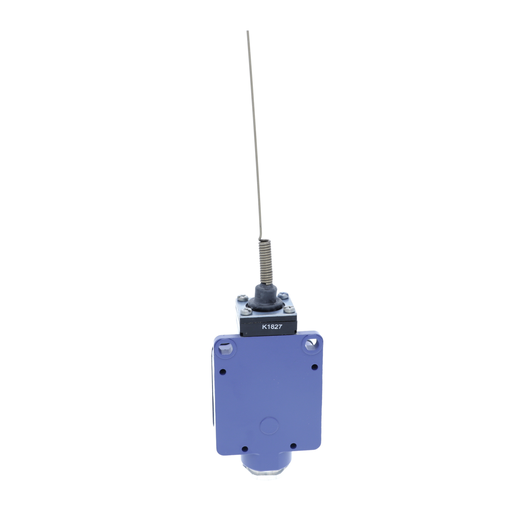

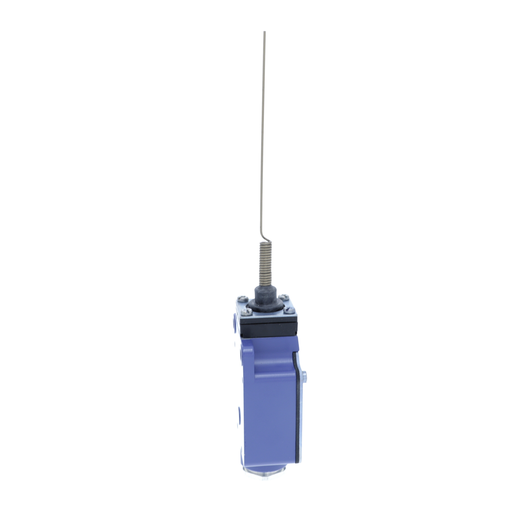

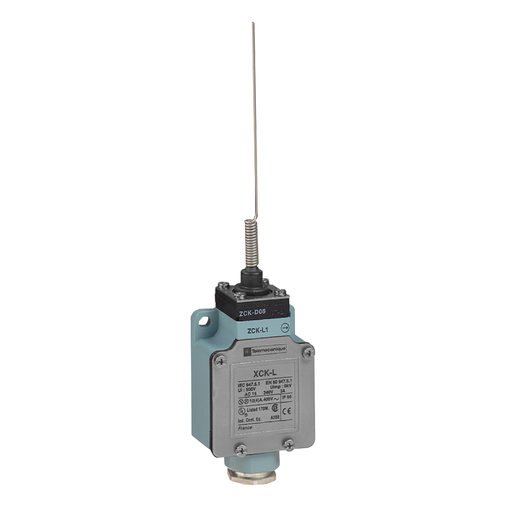

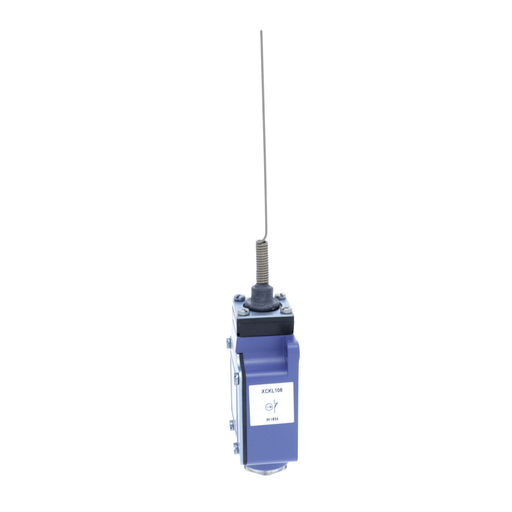

Product image for TES XCKL106 Limit switch, Limit switches XC Standard, XCKL, cats whisker, 1NC+1 NO, snap action, Cable gland
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

TES XCKL106 Limit switch, Limit switches XC Standard, XCKL, cats whisker, 1NC+1 NO, snap action, Cable gland

Manufacturer: TESENSOR | Catalog # XCKL106 | Echo Electric Part # 129718
$253.24/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This XCKL classic format limit switch has a "cat's whiskers" and a Zamak body. This limit switch has a robust Zamak body, a modular design allowing easier maintenance and a classic format. It is IP66 and IK05 impact resistant, making it ideal for heavy duty use in harsh conditions. It is fixed on the machine by its body, and has a typical 5 million cycles electrical durability in DC-13 utilization category. It complies with EN/IEC 60947.-5-1, CSA C22.2 No.14, EN/IEC 60204-1, UL 508, BV standards. Compatible with the well distributed range of common XCK heads, allowing quick replacement in case of damage. Variable composition design allows late modifications on the switch, for example change of connection type or head.

Technical Information

Action
BY ANY MOVING PART,MULTI-DIRECTIONAL APPROACH,SNAP ACTION
Actuator
SPRING RETURN CAT''S WHISKER
Amperage
10 Amp
Applications
CLASSIC
Body Material
Zamak
Body Type
Fixed
Cable Entry
1 metal cable gland entry 0.240.53 in (613.5 mm)
Contact Configuration
1 NC + 1 NO
Enclosure
NEMA 1/2/4/6/6P/12/13 IP66
Head Type
Multi-directional head
Material
Metal
Net Weight
0.255 kg
Number of Poles
2 Pole
Number of Steps
1
Operating Cycles
5000000 CYCLES, DC-13, INDUCTIVE, 120 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, INDUCTIVE, 24 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, INDUCTIVE, 48 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Operating Temperature
-25-70 Adegrees C
Size
30 MM,52 MM,72-72 MM
Standard
CSA C22.2 No 14,EN 60204-1,EN 60947-5-1,IEC 60204-1,IEC 60947-5-1,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
SCREW-CLAMP TERMINALS 1 X 0.34...2 X 1.5 MMA
Type
LIMIT SWITCH,MULTI-DIRECTIONAL HEAD
Voltage
240//250 VAC//VDC

Manufacturer Information

Brand
Telemecanique
Sub Brand
XCKL

General Product Info

12-Digit UPC
389110646514
GTiN
03389110646511
Product UPC
78590164651
Weight
0.56 lb

Dimensions

Depth
30 mm
Height
72-72 mm
Warranty Length
18 mth
Width
52 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,UL
Country of Origin
France
